SOUTHWESTERN INDUSTRIES TRAK TRL 1630SXمخارط CNC

صور ( 3 )

الثمن
علامة تجارية
موديل
بطاقة الهوية
464134
النوع
السنة
2005
الموقع
Ohio
الولايات المتحدة الامريكية

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على SOUTHWESTERN INDUSTRIES TRAK TRL 1630SX ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
464134
علامة تجارية
موديل
النوع
السنة
2005
الموقع
Ohio
الولايات المتحدة الامريكية
الثمن

الوصف

For Sale Southwestern Industries Proto Trak 1630SX Lathe with Programmable Tool Changer

المواصفات

تحويل المواصفات للمتري
أكسات
2
القدرة
7.5 hp
ماكس RPM
2500 rpm
الأرجحة
16 "
بالقطع طول
30 "

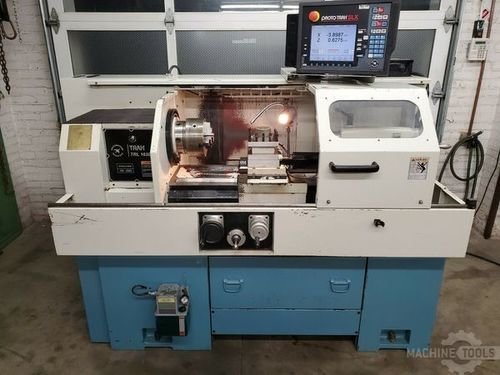

Southwestern Industries Proto Trak TRL 1630 SX with SLX Controll

Machine has just been serviced including Headstock oil has been drained , flushed and filled with New Oil

Saddle and Cross Slide have been disassembled , cleaned , flushed and verified all oil gallies are oiling correctly.

X Axis has been Rebuilt Including Ground Crossslide , New Rulon (Turcite) , New Ball Screw and Hand Scraped to Fit

Coolant tank has been drained and cleaned

Lathe has been Calibrated using Fixture from Southwestern Industries

Comes with8" 3 Jaw Chuck with Adjustable Scroll ( Tru Adjust)

4 Star 4 position Programmable Tool Changer that has been Disassembled ,Cleaned , Inspected and Greased
Lathe is powered and can be Tested

Balance on pickup.Shipping can be arranged at buyers cost.

Please call first to arrange shipping before purchase
Can load on truck or trailer at NO Charge

Machine Specifications
· Height of Centers-8”

· Distance between centers-30”

· Swing over bed -16”

· Swing over saddle wings-16”

· Swing over cross slide-8.6”

· Cross slide travel-9.6”

· Tool section max-3 /4”

· Coolant tank capacity-11 gal.

· Width of Bed-12.6”

· Height of Bed-12.6”

· Spindle Nose (Camlock)-D1-6

· Spindle through hole-2.12”

· Spindle taper-MT#6

· Taper in reduction sleeve -N/A

· Spindle dia at front bearing-3.15”

· Number of bearings-2

· Bearing class (radial round)-P5

· Spindle speed range (RPM)-150-2500

· Optional Tailstock Quill travel-5”

- Quill diameter-2.36”

- Quill taper hole-MT#4

· Spindle Motor HP -7.5

· Power requirements, control-110V; 1P; 8 A

· Power requirements, machine-220V;3P;60Hz

· Amps full load current-25

· Dimensions net - 79 x 38 x 54”

· Dimensions shipping - 87 x 45 x 67”

· Weight net - 3,200 lbs.

· Maximum rapid feed X - 100

· Maximum rapid feed Z - 150

· Spindle motor brake - Dynamic braking

· Way surface hardness - 400 – 450 HB

· Head stock lubrication - Oil bath

· Sliding door for easy set-ups

· Bedways hardened and ground

· Sliding surfaces Turcite coated

· Dovetails on cross slide, V-ways on saddle

· Adjustable saddle gibs


Machine has just been serviced includingHeadstock oil has been drained , flushed and filled with New Oil

Saddle and Cross Slide have been disassembled , cleaned , flushed and verified all oil gallies are oiling correctly.

X Axis has been Rebuilt Including Ground Crossslide , New Rulon (Turcite) , New Ball Screw and Hand Scraped to Fit

Coolant tank has been drained and cleaned

Lathe has been Calibrated using Fixture from Southwestern Industries

Comes with8" 3 Jaw Chuck with Adjustable Scroll ( Tru Adjust)

4 Star 4 position Programmable Tool Changer that has been Disassembled ,Cleaned , Inspected and Greased
Lathe is powered and can be Tested
