B&K / MV MACHINE WORKS 60تشكيل البكر

صور ( 7 )

علامة تجارية
B&K / MV MACHINE WORKS
موديل
60
بطاقة الهوية
464268
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3085
بطاقة الهوية
464268
علامة تجارية
B&K / MV MACHINE WORKS
موديل
60
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3085

الوصف

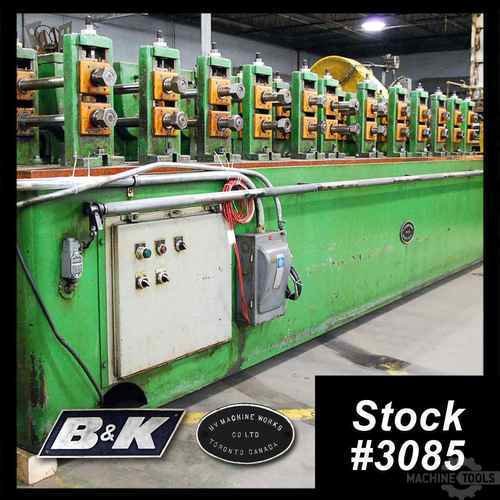

12 Stand x 1-1/2″ x 12″ B&K/MV Rollform Line

المواصفات

UTUBE NUMBER: 3085

MANUFACTURER: B&K / MV Machine Works

MODEL NUMBER:

SERIAL NUMBER:

YEAR:

SPECIFICATIONS:

ROLLFORMER:

Number of Stands: 12

Line Direction: Right to Left

Spindle Diameter: 1-1/2"

Roll Space: 12"

Horizontal Center: 14"

Vertical Adjustment: 4" – 6"

Base Top to Center Lower Spindle: 6"

Spindle Key Size: 3/8"

Equal Geared

EQUIPPED WITH:

ASL UNCOILER:

Model Number: 60

Coil Capacity: 2,000 Lbs.

Maximum Coil O.D.: 60″

Maximum Coil Width: 16″

Coil I.D. Range: 16″- 20″

Friction Brake, Manual Expansion

MV MACHINE WORKS 2 POST CUT OFF:

Post Diameter: 2"

Die Area: 12" x 18"

Distance Between Posts: 12- 1/2"

Maximum Width of Cut: 6"

WICHITA Clutch & Brake, Top & Bottom Rails

15′ Runout Table

DIMENSIONS & APPROXIMATE WEIGHTS PER PIECE:

Uncoiler: 4′ x 4′ x 5′, 1,000 Lbs.

Rollformer: 16′ x 3’6" x 4’6", 8,000 Lbs.

Cut Off: 3′ x 4′ x 4’6", 2,600 Lbs.

LOCATION:

Universal Warehouse, Perrysburg, Ohio

CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS USED 12 STAND X 1-1/2″ X 12″ ROLLFORM LINE BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ THE TERMS AND CONDITIONS OF SALE THAT APPLY TO THIS USED 12 STAND X 1-1/2″ X 12″ ROLLFORM LINE. VISIT UNIVERSALCONTROLSGROUP.COM FOR INFORMATION ON NEW CONTROL PANELS, DRIVE SYSTEMS AND PLANT AUTOMATION.
