SRET EQUIPMENT CO. LTD. WLHT80المراكم

صور ( 2 )

علامة تجارية
SRET EQUIPMENT CO. LTD.
موديل
WLHT80
بطاقة الهوية
464297
النوع
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3460
بطاقة الهوية
464297
علامة تجارية
SRET EQUIPMENT CO. LTD.
موديل
WLHT80
النوع
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3460

الوصف

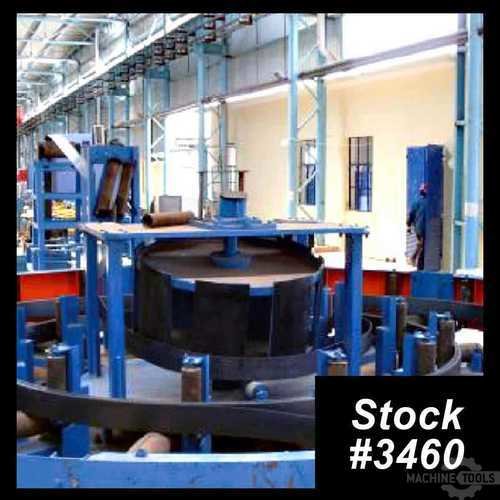

NEW 10″ (254 mm) x .100″ (2.54 mm) SRET Horizontal Strip Accumulator

المواصفات

UTUBE NUMBER: 3460

MANUFACTURER: SRET EQUIPMENT CO. LTD.

MODEL NUMBER: WLHT80

SERIAL NUMBER: NEW Equipment

DELIVERY: 5 – 6 Months From Receipt of Order

Material: Carbon Steel

Strength: Yield 55,000 PSI

Line Direction: TBD

Maximum Strip Width: 10″ (254 mm)

Minimum Strip Width: 3″ (76.2 mm)

Maximum Strip Thickness: .100″ (2.54 mm)

Minimum Strip Thickness: .030″ (0.76 mm)

Maximum Strip Storage: 2624′ (800 M)

Minimum Strip Storage: 1968′ (600 M)

Maximum Fill Speed: 490 FPM (150 m/Min.)

Maximum Tube Mill Speed: 295 FPM (90 M/Min.)

EQUIPPED WITH:

(1) Twist Stands for Strip Entry

(1) Pinch Roll Stand, AC Motor Drive

(1) Accumulator Main Body

(1) Turn Table Accumulation, AC Motor Drive

(1) Angle Drum Spiral Track

(1) Twist Stand for Strip Exit

(1) Electrical Control System

– Machine shall be manufactured following the specification described above

– Pipes and wires inside machine

– Inspection and trial run before shipment

– Documents: Machine general assemble drawing, Machine foundation

drawing, Piping engineering drawing, Electric schematic

diagram, Operation panel drawing, Hydraulic diagram,

Consumable parts drawing, Operation manual and technical

documents for commercial parts

OUT OF SUPPLY:

– Foundation, Installation works and their materials

– Piping and Wiring works and materials outside the machine at buyer site

– Water supply system and air compressor

– Oil for hydraulic, lubrication oil, grease and other oil

– Spare parts, consumable materials and disassembling tools

– Safety guards and covers for running machine.

One year of warranty term and long term service. The warranty term is

calculated since twelve (12) months from the date of the first operation

or sixteen (16) months from the date of shipment, whichever comes earlier.

Within warranty term, if any defect or deficiency is found on the machine

or machine is under normal and proper operation, and such defect or

deficiency is proved to fall under the responsibilities of the seller,

and is accepted by seller, the seller will remedy it by repairing or

supplying the necessary parts or materials.

The seller shall not be responsible for any consequential loss or damage

resulting from any defect, or for any loss of earning time due to delays

in installation or operation due to any such defect.

The seller’s warranty with respect to electrical equipment and commercial

parts manufactured by others does not extend beyond that offered by

original manufacturer to the seller.

VALIDITY: The price is valid 30 days.

CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS HORIZONTAL STRIP ACCUMULATOR BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ OUR TERMS AND CONDITIONS OF SALE.
