WALTER HELITRONIC ESSENTIALأداة وكتر المطاحن

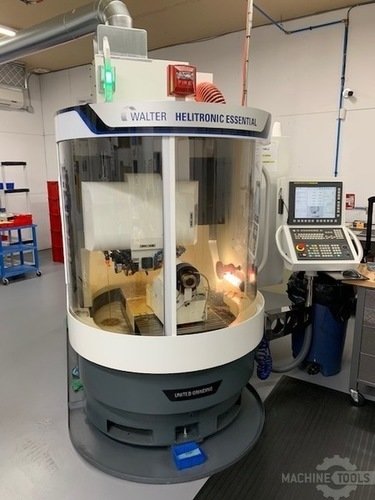

(1) Pre-owned: Walter CNC 5-Axis Tool Grinder
Model: Helitronic Essential
Year of Manufacture: 2016
Fanuc 31i Model B5 with TOOL STUDIO 2.1 R2
Diameter during complete processing: 3.937”
Max complete processing tool length: 10.04”
Max workpiece weight: 66 Lbs.
Max grinding wheel diameter: 5.9”
Grinding Spindle: 12 HP, 0 – 10,500-RPM continuously variable
Grinding head: Double-ended grinding spindle, NTC cone with flat contact surface;
Up to three grinding wheels for each spindle end.
Travels: X-13”, Y-7.87”, Z-18.5”
Max travel speed: X, Y & Z – 590.5 IPM
Swivel Range C: 400°
Automatic clamping cylinder with collar holder W25 shaublin.
Mist extraction system,
Filtration system Polytech
Operates with whole oil OIL FUCHS ecocut 7003
To the best of our knowledge, the specifications contained herein are accurate but should be verified at time of inspection. If you have any further questions please call me at (207) 784-1999.
