CLAUSING METOSA C1545SSمخارط المحرك

بطاقة الهوية
464466
علامة تجارية
موديل
السنة
1990
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
158932
الثمن

الوصف

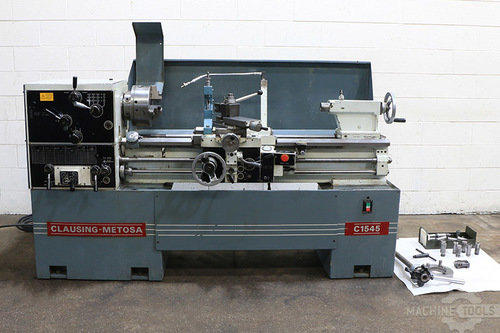

15" Swing 45" Centers Clausing-Metosa C1545SS ENGINE LATHE, Inch/Metric,Gap,3-Jaw,Follow,Aloris,Trav-A-Dial,

المواصفات

تحويل المواصفات للمتري
الأرجحة
15 "
المراكز
45.5 "
القدرة
7.5 hp

15"/23.6" X 45" CLAUSING-METOSA

GAP BED ENGINE LATHE

MODEL: C1545SS, S/N: 2775, NEW: 1990's



SPECIFICATIONS:

SWING OVER BED ....................... 15.75"

SWING INSIDE REMOVABLE GAP ........... 23.62"

SWING OVER CROSS SLIDE ............... 8.26"

SWING OVER CARRIAGE WINGS ............ 14.57"

DISTANCE BETWEEN CENTERS ............. 45"

SPINDLE BORE ......................... 2.05"

SPINDLE NOSE ......................... D1-6"

SPINDLE TAPER ........................ #4 MORSE

WIDTH OF BED ......................... 12"

SPINDLE SPEEDS (12) .................. 40 - 2200 RPM

LONGITUDINAL FEED RANGE (44) ......... 0.0018 - 0.0264 IPR

CROSS FEED RANGE (44) ................ 0.0005 - 0.0076 IPR

THREADING RANGE ENGLISH (44) ......... 4 - 60 TPI

THREADING RANGE METRIC (44) .......... .5 - 7.5 MM

TAILSTOCK SPINDLE TRAVEL ............. 6"

TAILSTOCK SPINDLE TAPER .............. #4 MORSE

APPROXIMATE DIMENSIONS ............... 90"L x 40"W x 54"H

APPROXIMATE WEIGHT ................... 2,950 LBS



EQUIPPED WITH:

- 10" 3-JAW CHUCK

- FOLLOW REST

- ALORIS QUICK CHANGE TOOLPOST

- TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL

- LEVER TYPE 5C COLLET CLOSER

- THREAD DIAL INDICATOR

- FULL LENGTH BACK SPLASH GUARD

- COOLANT PUMP AND TANK

- 7.5 HORSE POWER MAIN MOTOR



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE



FOR MORE INFORMATION: Call David at 973-497-7570
