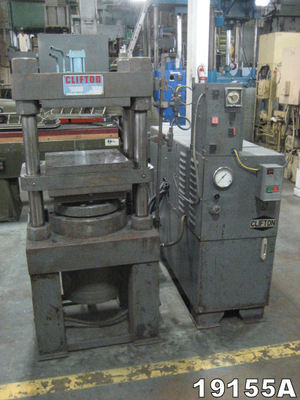

USED 100 TON CLIFTON HYDRAULIC MOLDING PRESS
Upstroke 4 Post Type Floor Standing
Distance Between 3" Dia. Posts: 20.5" L R x 9.5" F B
Platen Area (Nominal): 19.5" L R x 18" F B
Overall Dimensions of Platen: 29" L R x 18" F B
Stroke of Fully Guided Platen: 0 - 10" Maximum
Daylight Opening (Total): 15.5" Maximum
Daylight Opening Between Bolsters: 11.5" Maximum
Top Bolster: 18" L R x 18" F B x 2" Thick
Bed Bolster: 18" L R x 18" F B x 2" Thick
Main Ram Diameter: 12"/11.5" @ 1768 PSI 100 Tons
Side Rams Diameter (2): 2.5" Diameter (For Approach Only)
Floor to Top of Moving Platen: 42"
Power Unit (Free Standing): Vickers Model V2230521AA20S214
Fixed Volume Double Vane Pump,
2 GPM & 5 GPM @ 2000 PSI
Driven by 5 HP 1200 RPM
220/440/3/60 Motor
Speeds Approx.: 160"/Min. Closing
4"/Min. Pressing to 100 Tons
175"/Min. Return
Controls: Pushbutton Operation w/Stroke &
Pressure Control
Dual Palm Buttons
Selector Switch For Manual or
Semi automatic Operation
Cycle Timer
Pressure Gauge
Weight approx. 4800# (Press); 1300# (Power Unit)
Overall Dimensions Approx. 34" L R x 50" F B x 66" H (Press)
69" L R x 27" F B x 61" H (Power Unit)
Serial No. 740 (WLFO)
Stock No. 19155
FOB ELK GROVE VILLAGE, IL
