KRAS VSK063Molding Presses

24951
Photos (3)

More on this model

To view more information on the KRAS VSK063, including brand information, photos, videos, and more, click here.

Description

63 Ton, Kras, 4 Post, 12.5" str., 25" DL, 22" x 22" platen, #24951.

Specs

Convert Specs to Metric
Tonnage
63 T
Stroke
12.5 "

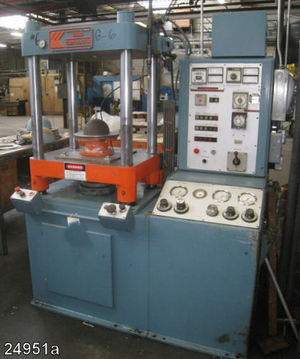

63 TON KRAS MOLDING PRESS
Hydraulic
Model VSK063
4 post upstroke type
Floor standing
Distance between 2.75" dia. posts: 22" L-R x 14" F-B
Platen area (nominal): 22" L-R x 22" F-B
Stroke of fully guided platen: 0 - 12.5" maximum
Daylight opening (total): 25" maximum
Bottom ejector rod spacings: 19.5" L-R
Main ram diameter (1): 7.5"/4.5" @ 2852 PSI - 63 tons
Floor to top of moving platen: 42"
Power unit (base of press): Rexroth combination hydraulic pump,
Driven by approx. 7.5 HP motor
Speeds approx.: 236"/min. closing
15"/min. pressing to 63 tons
236"/min. return
Controls: Pushbutton operation w/stroke &
pressure control
Dual pushbutton operation
Cycle timer
(20) mold heater receptacles
Pressure gauges
Weight approx. 6500#
Overall dimensions approx. 64" L-R x 50" F-B x 78" H
Serial no. N/A
Stock no. 24951
FOB ELK GROVE VILLAGE, IL
