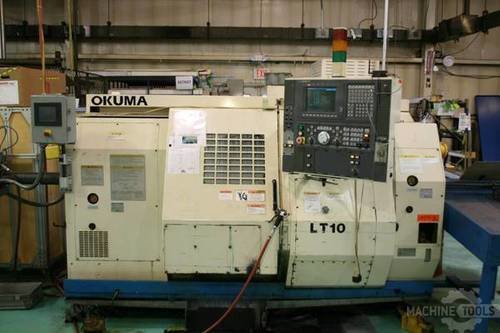

OKUMA LT-10MCNC Lathes

ID #
406348
Brand
Model
Condition
Used - Excellent
Year
1998
Location
Illinois
United States
Stock #
1245447
Price Range
$10,001 - $50,000 USD

Specs

Convert Specs to Metric
Chuck Size
6 "
Power
10 hp
Max RPM
6000 rpm
Turning Dia
8.3 "
Weight
13,200 lbs

Specifications:
X-Axis Travel: 7.68”
Z-Axis Travel: 27.6”
Max Turning Length: 5.1”
Max Turning Diameter: 8.3”
Max Diameter Above The Bed: 15.8”
Length Between Centers: 37.8”
Spindle Bore: 2.1”
Spindle Nose: 5.51" across flats
Spindle Motor: 30 Min. / Cont. 10 HP / 7.5 HP
Spindle Speed: 50 - 6000 RPM
Number Of Turrets: (2) V12 Type
Number Of Turret Positions per Turret: 12
Chuck Size: 6"

Equipped With:
Available Operators Manuals,
Iemca Bar Feeder,
Chip conveyor
