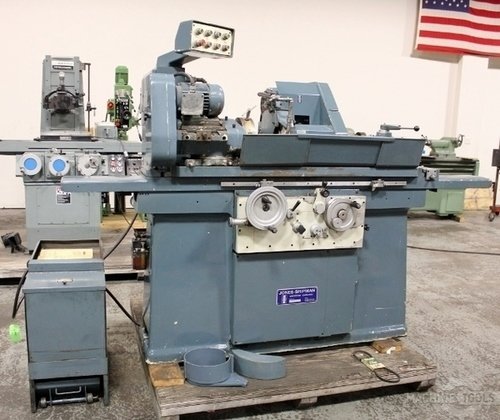

JONES & SHIPMAN 1300Universal Cylindrical Grinders

ID #
416325
Model
Condition
Used - Excellent
Year
1979
Serial #
BO 92088
Location
New York
United States
Return Policy
30-day
Stock #
002176
Price
$12,500.00 USD

Description

Excellent Condition; Call Marc @ (732) 390-0006 to inspect under power in NY

Specs

Convert Specs to Metric
Swing
10 "
Centers
27 "
Power
5.5 hp
Workhead Motor
4 hp
Workhead Spindle Speed
320 RPM
Grinding Wheel Dia.
12 "
Max Weight Between Centers
220 lb
Dimensions
97" L-R x 32" FB x 69" H
Weight
4256

Jones & Shipman Model 1300X 10” x 27” Universal Cylindrical Grinder with Swing Around ID Spindle

Serial # BO 92088

Specifications:
Wheelhead:
Total Infeed, 9.6″
Max. Programmable Diametral Infeed Rate, per Min., 3.9″
Min. Programmable Increment 0.00005″
HPG Increments 0.00005″, 0.0005″, 0.005″
Swivel Range 109 Deg. CW or 45 Deg. CCW
External Grinding Wheels:
Left Hand Standard 14″ x 2″ x 5″
Right Hand Standard 12″ x 1″ x 5″
Max. Diameter Ground Using 14″ Wheel 12″
Max. Diameter Ground Using 12″ Wheel 14″
Spindle Speeds 1775, 2068, 2400rpm
Motor Power 5.5HP
Internal Grinding Wheels:
Diameter Range (Standard Spindle) 0.75″ – 1.5″
Spindle Speeds, Standard 16500rpm
Motor Power 3HP
Table:
Maximum Traverse Speed, Per Minute 196.8″
Minimum Programmable Increment 0.00005″
HPG Increments 0.00005″, 0.0005″, 0.005″
Maximum Length Between Centers 27″
Table Swivel Angle 16 Deg. CW to 18 Deg. CCW
Workhead:
Center Height, Standard 5″
Maximum Workpiece Weight Between Centers 220lbs.
Motor Power 1.5HP
Speed Range, Continuously Variable 1 to 660rpm
Swivel Range 15 Deg. CW to 90 Deg. CCW
Centers, Standard 5MT
Floor Space Required (LxWxH) 173″ x 65″ x 71″
Machine Weight 5300 lbs.
