ACCUT SL-360GCNC Lathes

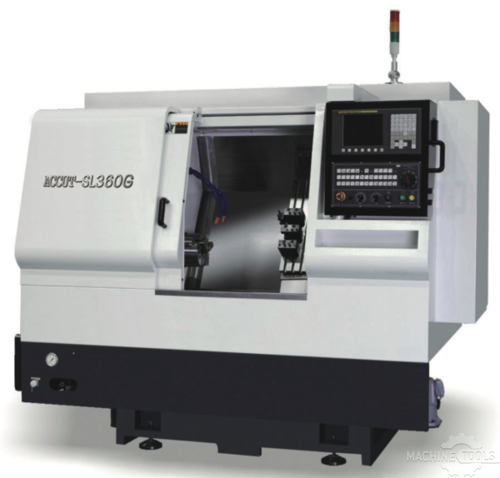

Sl360g cnc lathe machine 1
Photos (1)

More on this model

To view more information on the ACCUT SL-360G, including brand information, photos, videos, and more, click here.

Description

High precision spindle; High efficiency machining, Max. speed of spindle is 5500 rev/min, rapid traverse rate of X and Z axes is up to 18m/min; High rigidity meehanite cast iron 60°slant bed, easy chip removal, compact design, beautiful appearance; Accurate feeding: Accurate feeding, adopted NSK and THK precision ball screw, Repeatability is less than <±1μm; Comb type tool rest; Extra heavy cutting; Driven by Fanuc control system that enable the lathes with great stability.

Specs

Convert Specs to Metric
Bar Capacity
1.77 "
# Axis
2
Power
10 hp
Max RPM
5500 rpm
Turning Dia
14.17 "
Swing
15.75 "
Machining Length
7.87 "
Tailstock
Yes
Live Tooling
Yes
Sub Spindle
No
Dimensions
2360×1569×1810 MM
Weight
2800 KG
Control
CNC (Siemens/Fanuc)

Super precision slant-bed CNC lathe - SL360G
capacity Max.swing dia.over bed mm Φ 400
Max. swing over cross slide mm Φ 90
Max.turning diameter mm Φ 360
Max.turning length mm 200
Spindle Spindle speed r/min 200~5500
60~5500(optional)
Spindle bore diameter mm Φ 57
Bar capacity mm Φ 42 (collet chuck)
Φ 45 (chuck)
Main motor kw V.F.Motor 5.5
servo motor 5.5/7.5 (optional) Fanuc
Turret Number of stations 7
Tool size mm 20X20/Φ25
Axes Travel X mm 360
Travel Z mm 400
Rapid feed(X/Z) m/mim 18
Feed motors(X/Z) kw servo 1.2
C axis (optional) Min. indexing angle 0.001°(encoder)
Others Chuck 5"
Rotating hydraulic cylinder 6"
Required electric power(KVA) kva 12
Floor space(L×W×H) mm 2360×1569×1810
Weight kg Aproximate 2800
