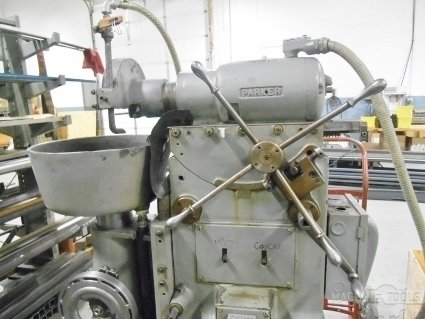

PARKER MAJESTIC ROTARY GRINDERRotary Surface Grinders

ID #
428227
Model
ROTARY GRINDER
Condition
Used - Excellent
Location
Michigan
United States
Return Policy
as-is
Price
$4,950.00 USD

Description

Offered by: Allied Machinery Co., Inc 11430 Kaltz Ave Warren, MI 48089 586-754-9200 586-754-5131 fax Specs: Permanent magnetic chuck diameter: 8" Maximum height from face of chuck to spindle centerline: 8-1/2" Clearance inside splash pan: 13" Rotation of chuck, clockwise or counter-clockwise: (4 speeds) 44, 64, 80, 110 RPM Knee of machine elevates 4", chuck can be elevated additional 3", graduations in .0001" increments Spindle is a Parker Majestic 3x234-6 model Spindle rpm: 3,600 RPM Spindle slides on dove-tail ways; maximum travel across chuck is 5" Spindle tilts 15 degrees positive and 15 degrees negative to enable grinding of angles Built in coolant system Price: $4,950.00

Specs

Convert Specs to Metric
Chuck Dia.
8 "
Spindle (Horz/Vert)
Horz
Power
1.5 hp
Swing
13 "
Under Wheel
5 "
Grinding Wheel Width
0.625 "
Grinding Wheel Dia.
7 "
Weight
1,500 lbs

Offered by:
Allied Machinery Co., Inc
11430 Kaltz Ave
Warren, MI 48089
586-754-9200
586-754-5131 fax
Specs:

Permanent magnetic chuck diameter: 8"

Maximum height from face of chuck to spindle centerline: 8-1/2"

Clearance inside splash pan: 13"

Rotation of chuck, clockwise or counter-clockwise: (4 speeds) 44, 64, 80, 110 RPM

Knee of machine elevates 4", chuck can be elevated additional 3", graduations in .0001" increments

Spindle is a Parker Majestic 3x234-6 model

Spindle rpm: 3,600 RPM

Spindle slides on dove-tail ways; maximum travel across chuck is 5"

Spindle tilts 15 degrees positive and 15 degrees negative to enable grinding of angles

Built in coolant system
Price: $4,950.00
