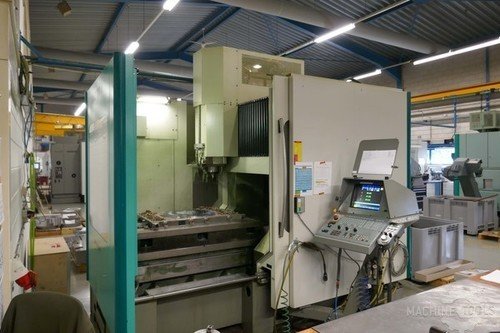

DECKEL MAHO DMC 100VVertical Machining Centers

ID #
428273
Condition
Used - Excellent
Year
1998
Location
Gelderland
Netherlands
Return Policy
as-is
Stock #
3947

Specs

Convert Specs to Metric
X
39.37 "
Y
31.5 "
Z
27.56 "
Power
13.4 hp
RPM
8000 rpm
# ATC
30
Table-W
31.5 "
Table-L
49.21 "
Taper
SK 40
# Axis
3
Control
CNC (Deckel Dialog 112)

MAKE Deckel Maho
TYPE DMC 100 V
YEAR 1998
SPECIFICATIONS
X - Travel 1000 mm

Y - Travel 800 mm

Z - Travel 700 mm

bed / plano / portal / moving column Portal milling

Controll Dialog 112

Table Length x Width 1250 x 800 mm

Table load in kG 1250 Kg

Spindle Taper Sk 40

kW power on spindle 10 kW

Spindle speeds / ranges 8000 Rpm

ATC tool changer 30

Number off controlled axis 3

Distance between columns 1300 mm

DIMENSIONS
Length 4500 mm
Width 3200 mm
Height 2850 mm
