ARKU VRM 200 / 7 / 2000Sheet & Strip Straighteners

Specs

Convert Specs to Metric
Max Width of Workpiece
78.74 "
Max Thickness of Workpiece
0.248 "
Control
CNC (Leonard + Bauer)

MAKEARKU Germany
TYPEVRM 200/7/2000 + AH 1200/2000/MSG-4Q
YEAR1990
SPECIFICATIONS
ControllLeonard + Bauer

Throat2000 mm

Maximum sheet thickness Steel6,3 mm

DIMENSIONS
Length6000 mm
Width 4500 mm
Height 3000 mm

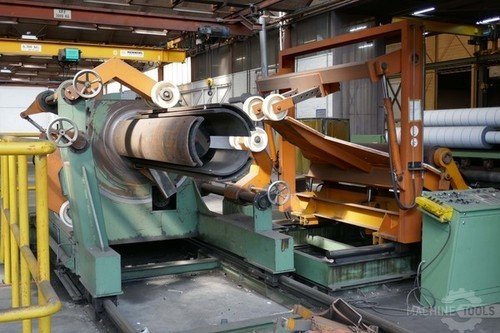

ARKU De-Coil & Straightener 2000 x 6,3 mm

Make : ARKU Germany
Typ : VRM 200 / 7 / 2000
Serial No : WO 1576
Age : 1989 in Work 1990

ARKU Precision straightener VRM 200/7

Working with : 2.050
Number off rolls : 7
Diameter rolls Ø : 220
Feeding rolls : 2
Diameter feed roll : 200
Feeding accuracy : 0,2 mm each Mtr
Working speed : 10 M/Min

Drive is with measure & counting device
Central adjustable cardan driven
Upper 3 roll un depending electric adjustable
Upper roll is hydraulic liftable and adjustable

ARKU Decoiler AH 12000 / 200 / MSG-4Q

Max. thickness material : 6,3 mm
Max. coil weight : 12000 Kg
Coil width : 2000
Feed width : 570 – 630
Coiling speed : 0 – 10 M/Min
Adjustment lower bed : 2400

www.mach4metal.com
