DOOSAN PUMA 800LCNC Lathes

ID #
428310
Brand
Condition
Used - Good
Year
2005
Location
South Carolina
United States
Return Policy
as-is
Price Range
Over $100,001 USD

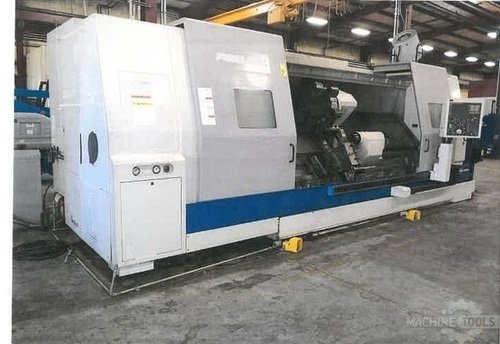

Left side open
Photos (4)

More on this model

To view more information on the DOOSAN PUMA 800L, including brand information, photos, videos, and more, click here.

ID #
428310
Brand
Condition
Used - Good
Year
2005
Location
South Carolina
United States
Return Policy
as-is
Price Range
Over $100,001 USD

Description

Just in time for the oil & gas sector boom, a rare 2005 DOOSAN PUMA 800L is immediately available with 12.6" Spindle Bore, 24" Air Chuck, Hydraulic Steady Rest, 126" Cutting Length, 35.4" Max Turning Diameter, 60 HP and Chip Conveyor.

Specs

Convert Specs to Metric
Chuck Size
24 "
Bar Capacity
12.6 "
# Axis
2
Power
60 hp
Max RPM
750 rpm
Turning Dia
35.4 "
Swing
40.6 "
Machining Length
126 "
Tailstock
Yes
Live Tooling
No
Sub Spindle
No
Dimensions
275" L x 118" D
Weight
48,060
Control
CNC (Fanuc 21i-TB)

Max Swing Over Bed / Carriage
40.5" / 31.5"
Spindle Motor
60 HP
Spindle Speed
750 RPM
Spindle Nose
A1-20
Tools
12
X-Axis Travel
18.5"
Z-Axis Travel
128"
Machine Weight
48,000
Max Turning Diameter
35.4"
Max Turning Length
126"
Tailstock Taper
MT#6

PRODUCT FEATURES:
Fanuc 21i-TB CNC Control
10.4" Color LCD
24" Rota TB-630-310 Self-Contained Air Chuck
12.6" Spindle Bore
SMW Autoblock SLU-5022 Hydraulic Steady Rest (1.77" - 12.2" Dia. Capacity)
Chip Conveyor (Side Exit)
Tow-Along Tailstock
Lostma Mist Collector
Chuck on Rear of Spindle
Manufacture Date June 2005
