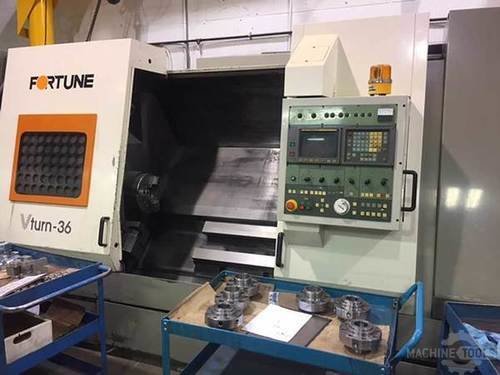

FORTUNE V-TURN 36CNC Lathes

Photos (10)

More on this model

To view more information on the FORTUNE V-TURN 36, including brand information, photos, videos, and more, click here.

Description

Machine Specs: Chuck: 12" Kitagawa B-212 Swing Over Bed: 25.5" Max. Turning Dia.: 21.6" Swing Over Carriage: 19.6" Center Distance: 52" Spindle Speed: 2500 RPM Spindle Nose: A2-8 Spindle Bore: 4.13 Spindle Motor: 35/30 HP Hole Thru Chuck Tube: 3.5" No. of Turret Stations: 10 Tailstock Quill Diameter: 4.33" Tailstock Quill Stroke: 3.94" Tailstock Quill Taper: #4 Morse Approx. Dimensions: 156" x 75" x 92" Approx. Weight: 19,000 lbs Equipped With: Fanuc OTC Control RS-232 Port 12" Kitagawa 3-Jaw Chuck Tool Presetter Tool Holders Box Ways Chip Conveyor Coolant System 45 KVS Transformer

Specs

Convert Specs to Metric
Chuck Size
12 "
# Axis
3
Power
34.9 hp
Max RPM
1300 rpm
Turning Dia
21.6 "
Swing
25.5 "
Machining Length
35 "
Tailstock
Yes
Live Tooling
Yes
Dimensions
148" L x 80" W x 88" H
Weight
19000 (LBS)
Control
CNC (FANUC O-TC)
