HAAS ST-10TCNC Lathes

Description

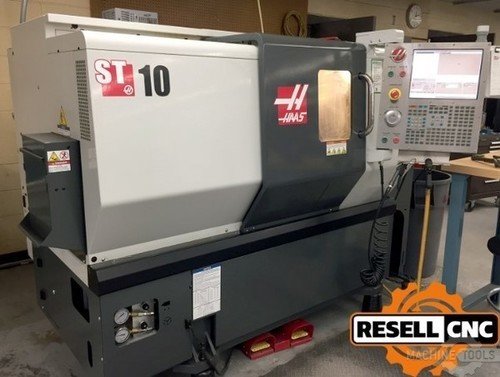

This 2011 Haas ST-10T CNC Lathe with 2" Bar Capacity, 7" Chuck, and 6,000 RPM Spindle is available for sale from Resell CNC.

Specs

Convert Specs to Metric
Chuck Size
7 "
Bar Capacity
2 "
Power
15 hp
Max RPM
6000 rpm
Turning Dia
14 "
Machining Length
16 "
Tailstock
Yes
Live Tooling
No
Control
CNC (Haas CNC)

Specifications:
X-Travel: 8"
Z-Travel: 16"
Distance Between Centers: 16"
Max Turning / Cutting Length: 16"
Max Cutting / Turning Diameter: 14"
Rapid Traverse: 1200 IPM
Bar Capacity: 2"
Chuck Size: 7"
Chuck Description: 3-Jaw
Spindle Bore: 2"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Spindle Nose: A2-5
Tool Positions: 12

Equipped With:
Tailstock
Tool Presetter
Transformer
Internal Step Down Transformer
Royal 5C Collet Chuck
Chip Conveyor
Haas CNC Control
