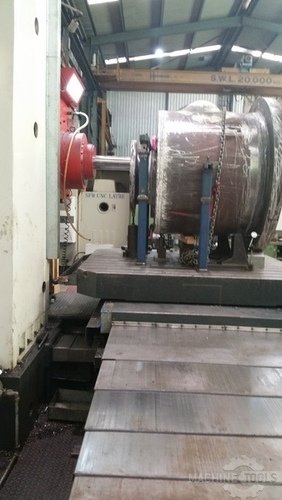

Horizontal Floor Type Boring MillsUNION BFP130 NC
Western Australia, AustraliaOverview
Brand
Model
ID #
432739
Condition
Used - Good
Year
1995
Serial #
12305
Location
Western Australia
Australia
Australia
Return Policy
as-is
Controller retro-fit 2005
Convert Specs to Metric
| Spindle Size | 5.1181" |
| Power | 67.1 hp |
| RPM | 1,000 RPM |
| Z-Spdl Tvl | 35.37" |
| Weight | 35.1 t |
| Control | CNC (Hiedehain NC 530 Control) |
Spec Sheet
Spindle diameter: 130 mm
x-travel: 2500 mm
y-travel: 2500 mm
w-axis: 1000 mm
z-travel: 2500 mm
Spindle taper ISO: 50
Spindle turning speed range: 5-1000 U/min
Table surface area: 1800 x 2000 mm
Max work piece Diameter: 2000 mm
Max work piece Height: 2000mm
Table load: 8 t
Feeds: 5 - 2500 mm/min
Rapid traverse: X,Y = 5000 mm/min W,U = 3400 mm/min
Dimensions of the machine ca.: 6,6 x 6,0 x 5,5 m
Rotary motion table: B-axis 360°,
Heidenhain-control NC 530
Coolant through inducer
Angle head attachment
