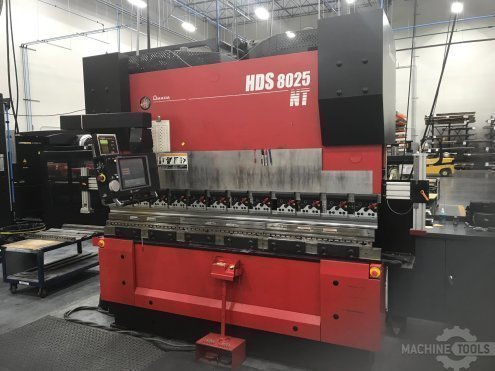

AMADA HDS-8025NTPress Brakes

Photos (5)

More on this model

To view more information on the AMADA HDS-8025NT, including brand information, photos, videos, and more, click here.

Description

88 TON AMADA HDS8025NT, INSTALLED:2003 CONTROL UPGRADE 2018 Our stock number: 11256

Specs

88 TON AMADA HDS8025NT, INSTALLED:2003 CONTROL UPGRADE 2018 Our stock number: 11256

System Specifications

Press Brake
Maximum Tonnage: 88 U.S. tons
Bend Lengt: 102 inches
Maximum Stroke Length: 7.87 inches
Open Height: 19.7 inches
Throat Depth: 16.3 inches
Distance Between Housings: 86.6 inches
Ram Repeatability: 0.00004 inches
Approach Speed: 7.87 inches per second
Bending Speed: 0.78 inches per second (Max) programmable
Return Speed: 7.87 inches per second
Hydraulic Oil Capacity: 9.5 gallons
Machine Weight: 14,800 lb. Approx.
Power Requirements: 44 Amps at 200 Volts

Backgauge
Repeatability: L Axis 0.0008 inches

Movement Range:

L Axis 27.55 inches
Y Axis 86.6 inches
Z Axis 9.8 inches

Feed Speed:
L Axis 1,180 inches per minute
Y Axis 2,362 inches per minute
X Axis 393 inches per minute

Minimum Command Unit
Ram 0.0001 inch
Backgauge 0.001 inch

CNC Controller
Model: Amada AMNC-PC
Axes of Control: Eight
D1 & D2 - Ram depth : ( 0.098" ram tilt)
L1 & L2 - Backgauge: (14 Backgauge Taper)
Z Vertical finger position: Y1 & Y2
- Horiz. finger movement, side to side CC - Ram crowning
