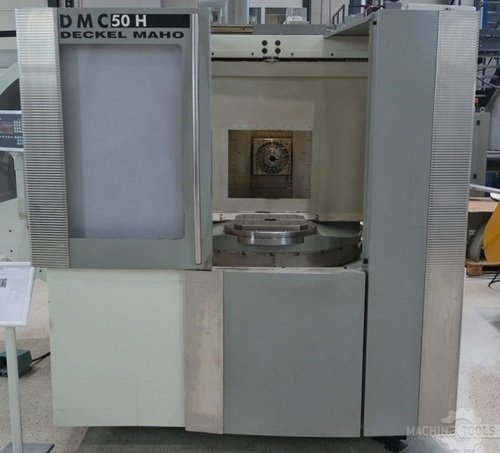

DECKEL MAHO DMC 50 HHorizontal Machining Centers

Description

Control System: Siemens 840 D, Movement X,Y,Z [mm]: 560, 560, 510, Toolmagazin 40-fold, Rapid traverse in X/Y/Z-Axis: 50 m/min, Acceleration in X/Y/Z-Axis: 7 m/s². Motorspindle, Speed: 18.000 rpm, Power: 15 kW, Torque: 130 Nm, Taper: SK40. Palletsize 400 x 400 mm, Palletclampingsurface: Threaded holes, Workpieceheight (max.): 700 mm, Sturgeon circle-ø: 600 mm, Loading per pallet: 400 kg. Direct scales in X/Y/Z, Chipdisposal: Chip conveyor, Coolingmanagement: Cooling unit, Extraction: Mechanical suction.

Specs

Convert Specs to Metric
X
22.05 "
Y
22.05 "
Z
20.08 "
Power
20.1 hp
RPM
18 rpm
Dimensions
3,800 x 2,500 x 2,700
Weight
8,500

DMG DMC 50 H 4-Axis
