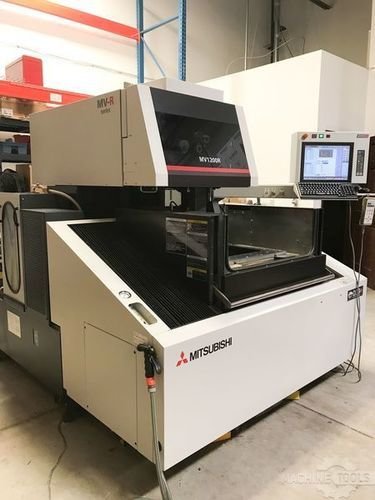

MITSUBISHI EDM MV1200RWire EDM

ID #
438161
Model
Condition
Used - Excellent
Year
2012
Location
Minnesota
United States
Return Policy
as-is
Price
$104,000.00 USD

Description

- Under Power - Full P.M Performed - Mitsubishi M700 CNC Control w/ 15" Touchscreen - V350-V AEII Power Supply - Fine Finish - DMX-S (Digital Matrix Sensor) Shapes each spark reducing electrode wear - Linear Shaft Drive System X,Y,U & V (no ball screws) - All Fiber Optic servo control (4X faster internal communication speed) - Submerged Machining to 8.7" Deep - Automatic Fluid Level Control - Manual Vertical Machine Tank Door - One Piece Hardened 4-Sided Stainless Work Table - Fine Grain "Dianite" Casting Material - Split Axis Construction (Table Moves in X, Column Moves in Y) - Windows XP Operating System - PM5 Power Master Control Improves Poor Flush Machining up to 50% - Program Input Methods: Keyboard, USB Flash Memory, and Ethernet with FTP standard - DC-Servo (Closed Loop) Torque Control Wire Tensioning System - Non-contact, Zero Back-Lash Linear Shaft Motor Drive System (X,Y,U &V Axes) - Linear Motion Guide Ways - All-Axes Absolute Control System - Linear Glass Scale Feedback (X-Y-U-V Axes) - Optical Rotary Encoder Feedback (Z-Axis) - Auto-Threading with Scrap Wire Chopper - New 14" AT Annealing Length Improves Threading Reliability - Inverter Controlled 16-Step Programmable Flushing - Full Time AEII (Anti-Electrolysis) Power Supply Protection - Dielectric Fluid Chiller Standard - Auto-Oiler Lubrication System

Specs

Convert Specs to Metric
X-Axis Travel
15.7 "
Y-Axis Travel
11.8 "
Z-Axis Travel
8.7 "
Auto Threading (Yes/No)
Yes
Submerged (Yes/No)
Yes
Dimensions
79.7" x 106.4" x 79.3"H
Weight
5,952
Control
CNC (M700)

Maximum Workpiece Dimensions: W x D x H in (mm) 31.9 x 27.6 x 8.5 (810 x 700 x 215)
Max. Submerged Workpiece Weight: lb (kg) 1102 (500)
Table Dimensions: in (mm) 25.2 x 21.3 (640 x 540)
U/V Travels (from center): in (mm) ±2.4 x ±2.4 (±60 x ±60)
Taper Angle @ Thickness: in (mm) 15 deg.@ 8.0 (15 deg.@ 200)
Wide Angle Taper (Optional Guides Required) 45 deg. @ 1.8" 45mm (No AT Possible)
Table Rapid Feed Speed: in/min (mm/min) 51.2 (1300)
Power Supply V350-V
Minimum Drive Unit / Resolution 0.000002 / 2 µin ( 0.00005 / 50nm)
User Program Storage [Hard Disk Size] 1 GB [32 GB CFAST Card Size]
Wire Diameter Possible: in (mm) 0.004~0.012 (0.1~0.3)
Minimum Start Hole Diameter: in (mm) 0.02 (0.5)
Max. Wire Spool size STD [optional]: lb (kg) 22 [44] (10 [20])
Filters / Type 2 / Paper
Filter Tank Capacity: gal (L) 145 (550)
Machine System Dimensions: in (mm) 79.7 x 106.4 (2025 x 2702)
Machine Installed Height: in (mm) 79.3 (2015)
Machine System Weight: lb (kg) 5952 (2700)
Fluid System Weight: lb (kg) Included with machine
Power Requirements [KVA] 200-230V [13.5] Built in AVR
Compressed Air Requirements 2.7 cu.ft./min. @ 71~100 psi
