KNUTH MF1VVertical Mills

ID #
439396
Brand
Model
Condition
Used - Excellent
Year
2008
Location
Pennsylvania
United States
Return Policy
as-is
Price
$6,755.00 USD

Description

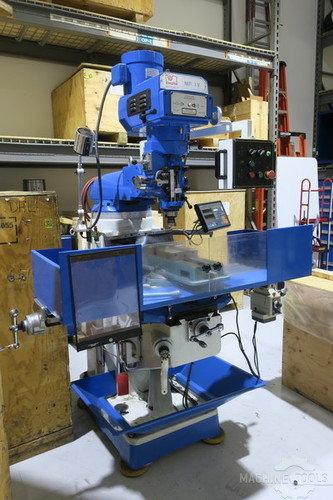

Knuth MF-1 V ( German Bridgeport Clone ), Multi-Purpose Milling Machine Beautiful condition,like new, 2008, Preloaded Ballscrews X & Y, 9" x 49" table, 30" X , 11.4" Y, 3HP , 3600 RPM, 3-Axis inf variable, DRO

Specs

Convert Specs to Metric
Table-W
9 "
Table-L
49 "
Travel-Long
30 "
Travel-Cross
11 "
Power
3 hp
RPM
3600 rpm
Dimensions
81" x 64" x 81″
Weight
2090 (LBS)

Knuth MF 1V Multi-Purpose Milling Machine
W/ 3-Axis Digital Readout & Preloaded Ballscrews on X & Y
New 2008

SPECIFICATIONS:
Table Dimensions 49" x 9"
Travel X-Axis 30"
Travel Y-Axis 11.4"
Travel Z-Axis 5"
Spindle Mount R8
Quill Power Feed Advance 3 Steps
X-Axis Power Feed Range 0.75 to 35 inch / min
Infinite Variable rapid feed
Spindle Speeds ( 2 ranges) 70 to 3,600 RPM
Throat 6.75" to 18.75"
Main Motor Rating 3HP
Power 220/3/60
Dimensions ( L x W x H) 81" x 64" x 82"
Weight 2200 Lbs

FEATURES:
• Speed is changed by shifting the 2-step drive motor transmission, or by selecting the desired gear ratio at the drive belt (4 speeds per gear)
• Automatic table feed, type TV 1000 in X and Y, can easily be retrofitted
• Head swivels through 3 axis: swivel r + l ± 90°; tilt forward + reverse ± 45°; rotation on the column ± 45°
• Dovetail guides, hardened, adjustable
• 3 automatic drill feeds
• Manual coarse feed for quill, with change-over for manual fine feed
• Quill with automatic micrometer depth stop
• Spindle mount ISO 30
• Reversing switch for forward reverse rotation
• Central lubrication for spindle, nut and guides
• Manual spindle brakes
• Test Certificate
• 3-axis position indicator, coolant system, and LED work lamp (included in standard equipment)
• Recirculating ballscrews in X & Y axes for maximum precision
