MORI SEIKI MT-2500SZ/15005-Axis or More CNC Lathes

ID #
441283
Condition
Used - Good
Year
2005
Location
Florida
United States
Return Policy
as-is
Stock #
113567
Price
$159,500.00 USD

Description

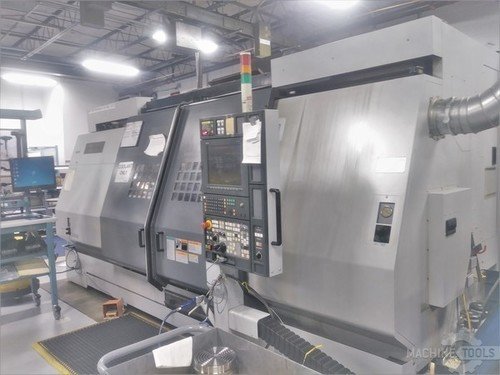

This multi axis lathe is equipped with dual spindles, a pendulum style B axis upper turret that is fed by a large 120 station tool changer. This upper turret has Y axis maneuverability, and mill/drill capability. There is also a lower 12 station turret that also has milling capability. Both spindles are full C axis rotational. It is equipped with (2) 10" 3 jaw hydraulic chucks. The machine will be well tooled and will include nearly (120) C-6 type toolholders for the upper turret/ATC, and also a number of static and live holders for the lower turret. The machine can be seen under power by appointment. There are (3) identical units available, with one being a late 2004 and the other two being 2005's, this being one of them. Contact us soon to get a special discount off of this listed price and take advantage of special pre-removal pricing by acting quickly.

Specs

Convert Specs to Metric
# Axis
9
Chuck Size
10 "
Bar Capacity
2.6 "
Power
30 hp
Max RPM
4000 rpm
Turning Dia
21.2 "
Swing
21.7 "
Machining Length
60.2 "
Tailstock (Yes/No)
No
Dimensions
152"x114"x105"
Weight
36,960 lbs.
Control
CNC (Mori/Fanuc MSX-501T (18iT))

(2) 10" 3 Jaw Hydraulic Chucks
Twin Spindle Design
Y Axis Capability on Upper B Axis Turret
B Axis Head w/ 120 Deg. Movement
120 Station Tool Changer
Full C Axis Capability on Both Spindles
Live Milling / Drilling Capability
12 Station Lower Turret with Live Tooling
High Pressure Coolant System
Chip Conveyor
Status Lights
All Available Static Tooling for Lower Turret
All Available Live Tooling for Lower Turret
Approx. 120 C-6 Tool Holders for B-Axis Head
19,949 Run Hours
All Available Manuals
Wired 220 Voltage
New in October 2005
