PJM MCV-64BAVertical Machining Centers

ID #
441355
Brand
PJM
Model
MCV-64BA
Condition
Used - Good
Year
2000
Location
Croatia
Stock #
HR-MIL-PJM-2000-00001

Description

This PJM MCV-64BA Vertical Machining Center from 2000 was built in Taiwan and has a production time of 30000 hours. Operated through a FANUC 0-M Control unit, this machine can perform with a spindle speed up to 8000 rpm. During the past, it has mainly been working with aluminum for the automotive industry. It incorporates box guideways and presents perfectly good conditions.

Specs

Convert Specs to Metric
X
25.2 "
Y
19.69 "
Z
19.69 "

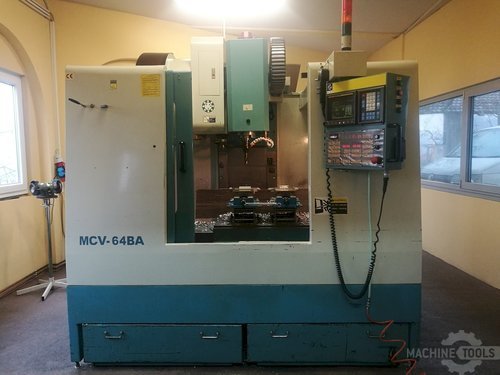

PJM MCV-64BA Vertical Machining Center

Production Hours: 30000

General Data:
Measurements width: 2200 mm
Measurements depth: 3000 mm
Measurements height: 2550 mm
Machine weight: 6000 kg

Control Unit:
Brand: FANUC
Model: 0-M
CNC main language: English

Main Drive:
Number of spindles: 1
Spindle speed range: 8000 rpm

Movement:
X-Axis Movement: 640 mm
Y-Axis Movement: 500 mm
Z-Axis Movement: 500 mm

Table:
Outer length: 800 mm
Outer width: 450 mm
Number of tslots: 4
Distance between: 100 mm

Tools:
Slots in storage: 24
Type of tool holder: BT40

Media:
Main electronic connection: 380V / 50Hz / 3P
Power consumption: 15 kVA

Additional Equipment:
* chip baskets
* RS232 for program transfer
