WEILER DZ40ARCNC Lathes

Photos (2)

More on this model

To view more information on the WEILER DZ40AR, including brand information, photos, videos, and more, click here.

Description

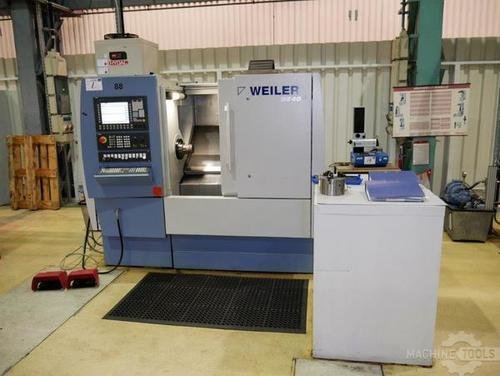

Lot 1: Weiler DZ240 AR CNC Slant Bed Lathe With Siemens 840D Control X' Axis Travel= 200mm. 'Z' Axis Travel=350mm. Max Turning=Ø200mm. Max Swing=Ø560mm. Max Parts Length=300mm. 16 Station Automatic Turret With Live Tooling. Max Spindle Speed=6300 RPM. Spindle Motor=11.6kW. Ø100mm Hydraulic Collet Chuck. S/No EC02 (2009).

Specs

Convert Specs to Metric
Chuck Size
6.299 "
Bar Capacity
1.654 "
# Axis
2
Power
15.6 hp
Max RPM
6300 rpm
Turning Dia
7.087 "
Tailstock
Yes
Control
CNC (SIEMENS SINUMERIK 840D)
