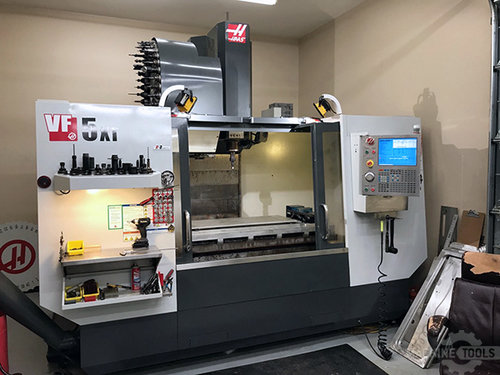

HAAS VF-5/40XTVertical Machining Centers

Photos (7)

More on this model

To view more information on the HAAS VF-5/40XT, including brand information, photos, videos, and more, click here.

Specs

Specifications:

Spindle Nose to Table (max) 32.9 In
Spindle Nose to Table (min) 7.9 In
Max Rating 30.0 HP
Max Speed With High speed 10,000 rpm
Max Torque 340 Ft-lbf @700rpm
Drive System 2-Speed Gearbox
Length 62.0 In
Width 23.0 In
T-Slot Width .630 In
T-Slot Center Distance 3.15 In
Number of Std T-Slots 7
Max Weight on Table (Evenly Distributed) 4000lb
Max Cutting 500 IPM
Rapids on X 710 IPM
Rapids on Y 710 IPM
Rapids on Z 710 IPM

Equipped With:

Upgraded 40 Position ATC,
Chip auger,
High Intensity Lighting,
Programmable Coolant,
Wired for 4th Axis,
