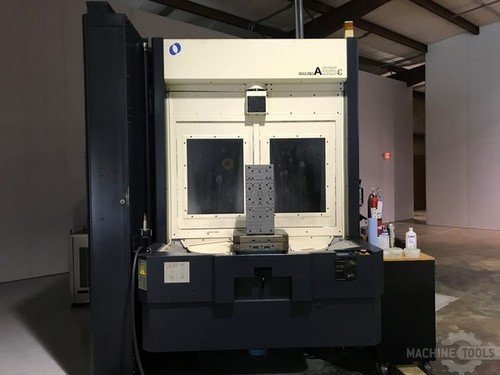

MAKINO A55EHorizontal Machining Centers

Description

2002 Makino A55e - 15.75" Pallets, Full 4th, Pro 3 Control, Travels (X/Y/Z): 22"/22"/23.6", 14,000 RPM Spindle, HSK-63A, 30HP, 90 Station ATC - Equipped With: Hi Pressure Coolant Thru Spindle, Data Server, Chiller, Chip Conveyor, Pro 3 (Fanuc 16iM)

Specs

Convert Specs to Metric
X
22.05 "
Y
22.05 "
Z
23.6 "
Power
25 hp
RPM
14000 rpm
# ATC
90
Pallet-W
15.75 "
Pallet-L
15.75 "
Taper
HSK-63A
# Axis
4
Dimensions
183" X 76" X 111"
Weight
18,960 LBS
Control
CNC (Pro 3)

Year
2002
Control
Professional 3 (Fanuc 16iM)
Pallet Size
15.75" x 15.75"
Max Pallet Load
1102LBS
Pallet Indexing (B)
Full 4th
Travel (X)
22.05"
Travel (Y)
22.05"
Travel (Z)
23.62"
Rapid Traverse (X,Y,Z)
3,307 IPM
Spindle Speed
14,000 RPM
Spindle Motor Cont.
30 HP
Spindle Taper
HSK 63
ATC
90
Machine Dimensions
180" x 75" x 118"
Machine Weight
19,000 lbs
Equipped With:

- Professional 3 (Fanuc 16iM) Control
- Full 4th Axis Contouring
- Chiller Unit
- 90 Station Tool Changer
- HSK 63A Spindle Taper
- Air Dryer
- Data Server
- Embedded Ethernet
- Coolant Thru Spindle (Hi-Pressure 1000psi)
- Coolant Tank & Pumps
- Chip Conveyor (Rear D/C)
- Auto Tool Length Measurement
