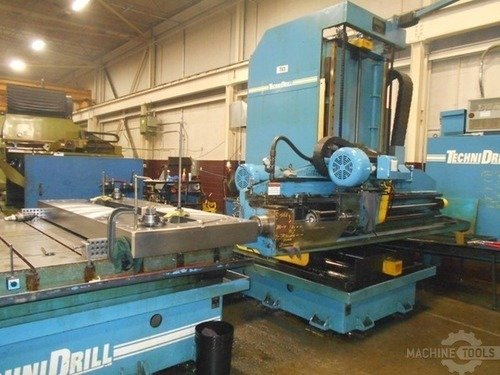

TECHNIDRILL BTA 220.1.00.10.2Gun Drills

ID #
446992
Condition
Used - Excellent
Year
2000
Location
Michigan
United States
Return Policy
30-day
Price Range
$50,001 - $100,000 USD
Photos (2)

More on this model

To view more information on the TECHNIDRILL BTA 220.1.00.10.2, including brand information, photos, videos, and more, click here.

ID #
446992
Condition
Used - Excellent
Year
2000
Location
Michigan
United States
Return Policy
30-day
Price Range
$50,001 - $100,000 USD

Description

TECHINDRILL GUN DRILL TABLE TYPE NEW YR 2000 WITH RETROFIT CONTROL X-101", Y-48" Z-DRILL DEPTH 96" LEMOINE CONTROL, YASKAWA DRIVES .187" TO 2" DIA. DRILL CAPACITY 1000 PSI COOLANT PRESSURE 450 GALLON COOLANT TANK 84" X 84" TABLE SIZE WITH 23" TABLE TRAVEL, HEIDENHAIN SCALES

Specs

Convert Specs to Metric
Max Dia. Hole Drilled
2 "
Max Drilling Depth
96 "
# Spindles
2
Control
CNC (Lemoine)

TECHNIDRILL CNC GUN DRILL MODEL 60-3A CNC
NEW 2000
CONTROL: LEMOINE RETROFIT
TRAVELS:
X-101" (84" FOR DUAL HEAD USE, TAPPING ON A GUN DRILLED HOLE)
Y- VERTICAL 48"
Z-MILLING TAPPING HEAD 10"
W- DRILL STROKE 96"
V-TABLE TRAVEL IN/OUT 23"
SPINDLE DRIVE: 30HP
GUN DRILL SPINDLE SPEED: 2000 RPM
WORK TABLE BOX TYPE: 84" X 84"
WORK TABLE CAPACITY: 40,000 LBS.
GUN DRILLING DIA. CAPACITY: .187 - 2" DIAMETER
FEEDS: 5" - 24" IPM
PRESSURE HEAD CAPACITY 5" - 24" IPM
COOLANT SYSTEM: 450 GALLON
COOLANT PUMP MOTOR 30 HP
COOLANT PRESSURE 1000 PSI

EQUIPPED WITH:
#50 TAPER ADDITIONAL MILLING SPINDLE
MILLING SPINDLE HAS APPROX 10" OF Z TRAVEL IN/OUT
BTA PRESSURE HEAD
LIFT UP CHIP CONVEYOR
COOLANT SYSTEM
MANUALS
ELECTRICS: 230 VOLT 3 PHASE (575 VOLT WITH TRANSFORMER)
ALL NEW YASKAWA SERVO DRIVES
HEIDENHAIN GLASS SCALE X-AXIS & Y-AXIS
ABOVE GROUND COOLANT TANK
WHIP GUIDES AND BUSHINGS
CHIP CONVEYOR
