OCEAN AVENGERBeam / Drill Lines

Photos (5)

More on this model

To view more information on the OCEAN AVENGER, including brand information, photos, videos, and more, click here.

Description

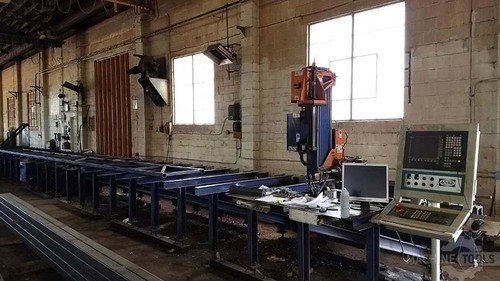

60’ X 40” Capacity CNC Single Spindle Beam Drilling System with Siemens CNC Control Console, 60’ Bed Capacity, 1 - 9/16” Drill Capacity and Drill Sharpener/Grinder

Specs

Convert Specs to Metric
Power
20 hp
Control
CNC (SIEMENS)

GENERAL SPECIFICATIONS

Type: CNC Beam Drill Line
Model No.: MDL1000B
Max. Profile Size: 60' x 40" up to 730 lbs/ft
Min. Drill Diameter: 5/16"
Max. Drill Diameter: 1-9/16"
Max. Material Thickness: Up to 10"
Max. Speed X axis: 100 FPM
Max. Speed Y axis: 120 FPM
Spindle Motor Power: 13.5 HP
Drilling Feed Rate: 2" - 10" per/Min
Spindle Stroke: 13"
Total Power: 20 HP
Average Output: 200 - 400 holes/hour - depending on the profile drilled
System Weight Approx. (Lbs.): 25,000
Electrics: 460V/3Ph

EQUIPPED WITH

Includes 60' Material Handling
250A Drill Grinder
Siemens CNC Console
Cables, Manuals, Toolbox

INCLUDES: Siemens CNC Control Console, 60’ Bed Capacity, 1 - 9/16” Drill Capacity and Drill Sharpener/Grinder
