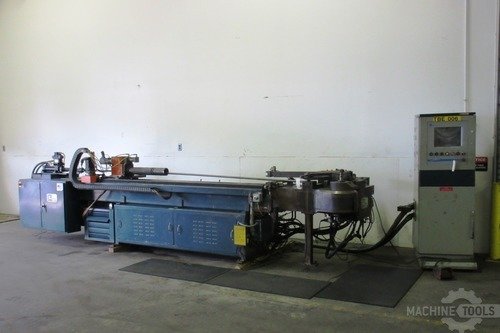

EATON LEONARD VB300SEPipe, Tube & Bar Benders

Photos (7)

More on this model

To view more information on the EATON LEONARD VB300SE, including brand information, photos, videos, and more, click here.

Description

3" OD x .120 Wall Capacity 3-Axis CNC Mandrel Type Horizontal Tube Bending System with Eaton Leonard Premier Control System, 180 Degree Maximum Bend Radius, 12" Maximum Bend Centerline radius, Mandrel Extractor, Pressure Die Assist, Direct Acting Pressure Die, Drop Away Type Clamping Die, Pneumatic Collet Closer, and Auto Lubrication System.

Specs

Convert Specs to Metric
Capacity
3 "
Horz/Vert
Horz

GENERAL SPECIFICATIONS

Maximum tube diameter: 3” OD
Maximum Tube Wall Thickness @ Max Diameter: 0.120” wall
Maximum bend radius: 180° + springback
Maximum bend centerline radius: 12”
Bending rotation: Right hand (clockwise)
Voltage: 460 volt, 3 phase electrics


INCLUDES

Eaton Leonard Premier Control System
Mandrel Extractor
Pressure Die Assist
Direct Acting Pressure Die
Drop Away Type Clamp Die
Pneumatic Collet Closer
Automatic Lubrication System
