NIIGATA SPN-50Horizontal Machining Centers

Description

3 MACHINE MULTI PALLET CELL

Specs

Convert Specs to Metric
X
29.5 "
Y
29.5 "
Z
29.5 "
Power
40 hp
RPM
12000 rpm
# ATC
180
Pallet-W
19.7 "
Pallet-L
19.7 "
Taper
50
# Axis
4
Dimensions
226"(LR)x99"(FB)x114"(H) EACH MACHINE
Weight
26400 (LBS) EACH MACHINE
Control
CNC (FANUC 16M)

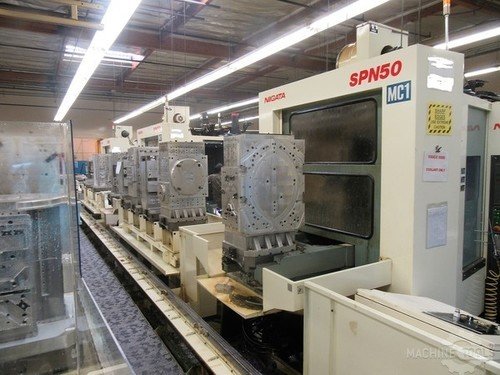

Niigata SPN50 Multi Pallet (3) Machine Cell- full 4-Axis HMC with Fanuc 16M control

Condition: Very Good-Under-Power, Aluminum Machining
Stock Number: 203774

Table Size - X (ins) 19.68
Table Size - Y (ins) 19.68
Table Capacity (lbs) 1320
Table Feed Rate (ipm) 1181
Number of Pallets Multi
X-Travel (ins) 29.5
Y-Travel (ins) 29.5
Z-Travel 29.5
Spindle Motor (hp) 40
Maximum Spindle Speed (rpm) 12000
Spindle Taper # 50
Number of Tools 60 each machine
Coolant thru Spindle
Full 4th Axis yes (360,000 deg.)

Equipped With:
* Control : Fanuc 16MB * Pallets: Multi System* Number of Machines in Cell: 3
