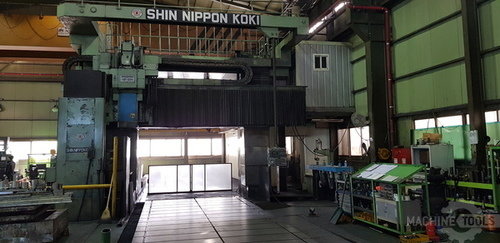

SNK HF-6MGantry Machining Centers (incld. Bridge & Double Column)

Photos (1)

More on this model

To view more information on the SNK HF-6M, including brand information, photos, videos, and more, click here.

Specs

Convert Specs to Metric
X
433.1 "
Y
165.4 "
Z
31.5 "
Power
34.9 hp
RPM
3000 rpm
Table-W
118.1 "
Table-L
393.7 "
# ATC
100
Taper
BT60
Control
CNC (Fanuc 15M)

5 Face Double column MCT
MAKER : SNK
MODEL : HF-6M
MFG DATE : 1990
SPECIFICATIONS -
CONTROL SYS: FANUC-15M
Distance between columns : 3,500mm
TABLE SIZE : 3,000x10,000mm
STROKE : X11,000 Y4,200 Z800 W1,950mm
Distance from table top to spindle nose: 3,000mm
ATC100
BT60
SPINDLE SPEED: MAX3,000rpm
SPINDLE MOTOR : 26/22KW
AAC3
(1) Extension head : 1
(2) 90 degree angle head : 2
