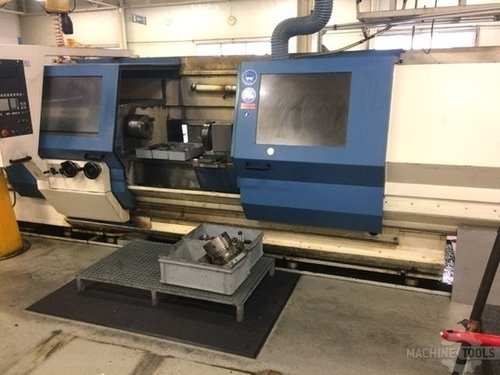

BOEHRINGER VDF DUC 560CNC Lathes
Brand
Model
ID #
448927
Type
Condition
Used - Good
Year
1994
Location
Rhone-Alpes
France
France
Return Policy
as-is
Stock #
6675
ID #
448927
Brand
Model
Type
Condition
Used - Good
Year
1994
Location
Rhone-Alpes
France
France
Return Policy
as-is
Stock #
6675
Description
- Distance between centers : 2000 mm
- Max swing over bed : 570 mm
- Swing over slide : 365 mm
- Spindle diameter : 100 mm
- Spindle nose : 8 DIN 55027
- Spindle power : 19/15 kW
- Spindle bore : Ø 62 mm
- Rotation speed : 3 - 2500 Tr/min
- 1 Turret / 8 stations VDI 30
- Taper tail stock : CM5
Equipped with :
- 1 CN SIEMENS BY LEARNING
- 1 Fixed steady
- 1 Set of tool holders of turret VDI 30
- 1 Hydraulic chuck 3 jaw Ø 250 mm
Specs
Convert Specs to Metric
Chuck Size
9.843 "
Power
20.1 hp
Max RPM
2500 rpm
Turning Dia
3.937 "
Swing
22.44 "
Tailstock
No
