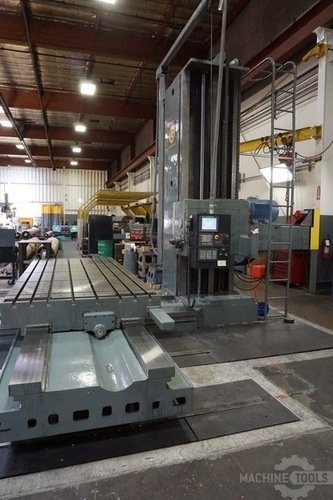

GIDDINGS & LEWIS 70-H5-THorizontal Table Type Boring Mills

Description

Beautiful remanufactured & retrofitted legacy "H" Series G & L

Specs

Convert Specs to Metric
Spindle Size
5 "
X-Horiz Tvl of Table
120 "
Y-Vert Tvl of Head
96 "
Power
40 hp
RPM
1020 rpm
Table-W
60 "
Table-L
120 "
Spindle Tvl.
36 "
Control
CNC (Fanuc 0iM)

Spindle: 5"
Spindle Taper: No. 50
Table Size: 60" x 120"
Table Travel (X): 120"
Vertical Travel (Y): 96"
Saddle Travel (W): 60"
Spindle travel (Z) : 36"
Spindle Speeds: 1-1020 RPM
Power Drawbar
4 Gear Ranges
4 Saddle Outriggers
3-Way Column
Hardened & Ground Steel Block Ways - Saddle & Bed
Non Metallic Way Liners
Pendant control
4 Axis CNC Control (3 simultaneous)
Z/W Tracking Feature ( custom Fanuc Feature )
New Fanuc 0iM Control system with 4 Fanuc Servo Motors
New AC Variable Frequency Spindle Motor and Emerson Drive (40 HP)
