Vertical MillsWMW HECKERT FSS 400 / SX1600

Ohio, United States

Overview

ID #
477110
Condition
Used - Excellent
Year
1995
Serial #
324214/20
Location
Ohio
United States
Stock #
P12376
Description
420-16 WMW HECKERT FSS 400/S x 1600, Newall 3-Axis DRO, 63" x 15" Table, 45 Deg. Swiveling Head, 50 Taper, 20 HP, 1995.
Specs
Convert Specs to Imperial
Table-W
520.7 mm
Table-L
1,803 mm
Travel-Long
1,118 mm
Travel-Cross
355.6 mm
Power
14.9 kW
RPM
2240 rpm
Taper
50 Std
Dimensions
100" x 80" x 105"
Weight
10,500 LBS

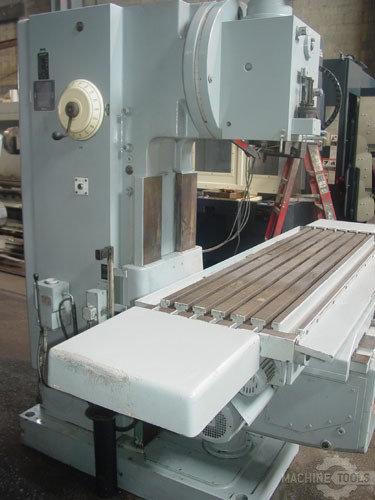

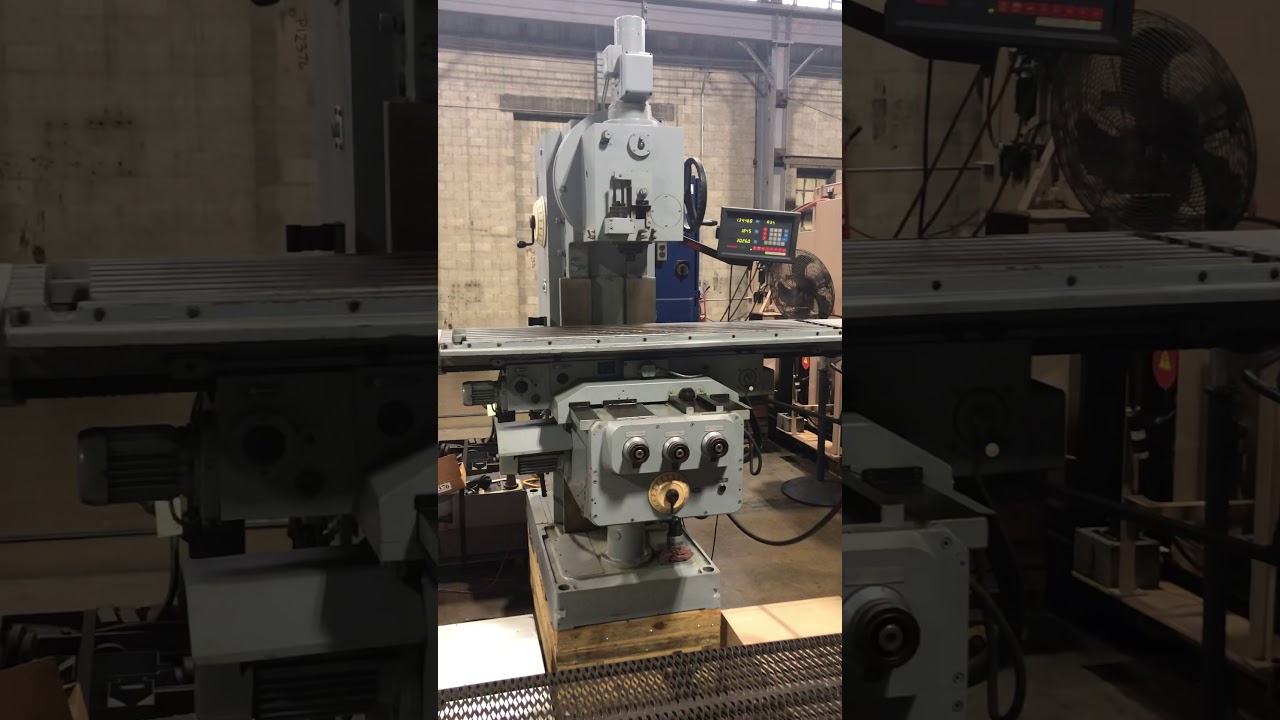

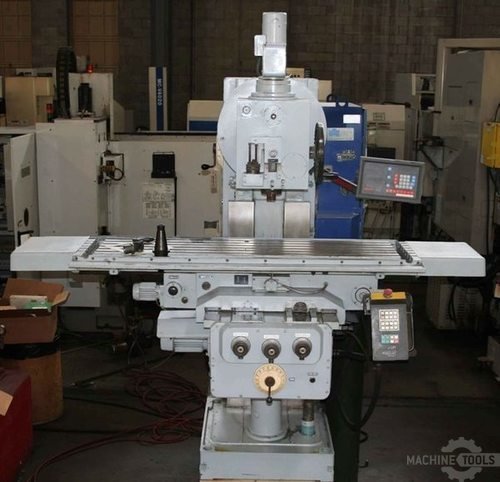

420-16 WMW HECKERT VERTICAL MILL
Model FSS400/Sx1600, New 1995, S/N 324214/20
Stock# P12376

EQUIPPED WITH:

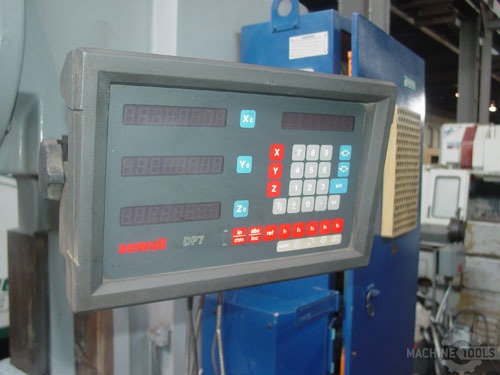

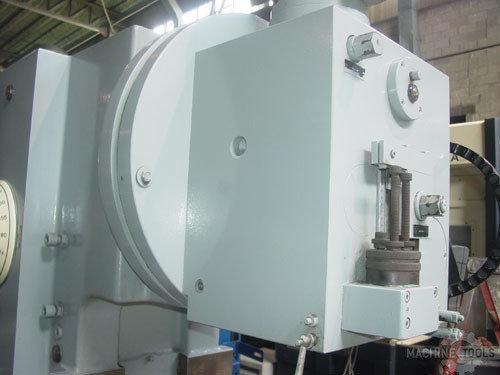

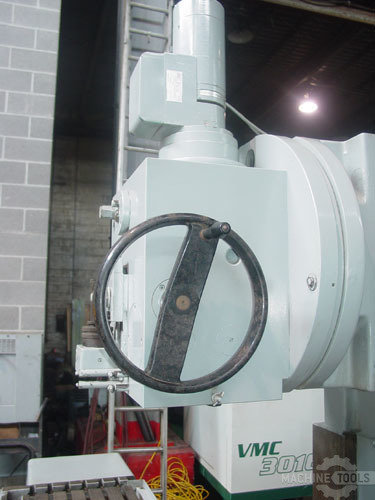

Newell DP7 3-Axis Digital Readouts, Swivel Vertical Head (45 Degrees in

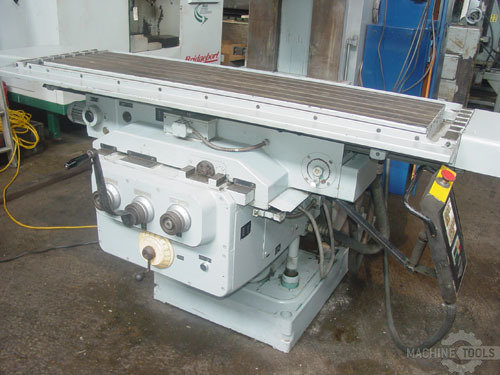

Each Direction), Pendant Control, Knee Motor, Rapid Traverse, Dial Type
Selection of Feeds & Speeds, Vertical Spindle Stop, Built-In Coolant
System.

CATALOGUE SPECIFICATIONS:

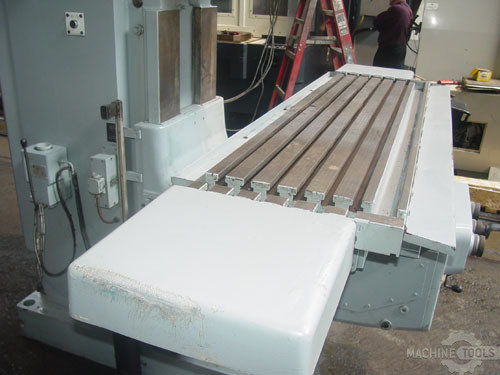

Table Dimensions (Overall), W x L ................ 20-1/2" x 71"
Table Working Surface, W x L...................... 15-1/2" x 63"
Maximum Weight of Workpiece....................... 3300 Lbs
Longitudinal Table Travel (X-Axis)................ 44"
Cross Saddle Travel (Y-Axis)...................... 14"
Vertical Knee Travel (Z-Axis)..................... 16"
Quill Travel...................................... 3-1/2"
Spindle Taper .................................... 50 Std. Taper
Spindle Speeds (18), Range ....................... 45 to 2240 RPM
Longitudinal and Cross Feeds...................... 5/8 to 31.5 IPM
Vertical Feeds.................................... 1/8 to 40 IPM
Spindle Nose to Table Top, Maximum ............... 19"
Spindle Nose to Table Top, Minimum ............... 1"
Power Rapid Traverse, Long. & Cross .............. 124 IPM
Motor, Horsepower/RPM ............................ 20 HP
Electrical System............... ................. 240/3/60
Approximate Machine Dimensions ................... 100" x 80"
Approximate Machine Height........................ 105"
Approximate Machine Weight........................ 10,500 LBS

CONDITION: Machine Appears to be in Excellent Condition!

About the Seller

See more listings of this Type

thumb

SHARP LMV

Vertical Mills

New In-Stock | California, United States
thumb

MANFORD SP-150VSL

Vertical Mills

New In-Stock | California, United States
€7,998.91 EUR
thumb

MANFORD SP-520VS

Vertical Mills

New In-Stock | California, United States
€13,452.71 EUR
thumb

MANFORD SP-500VS

Vertical Mills

New In-Stock | California, United States
€9,816.84 EUR
View All

See more listings for this Brand

thumb

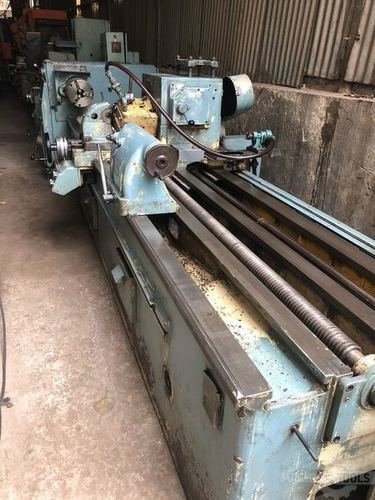

WMW HECKERT ZFWVG 250X3150
