Horizontal Band SawsKARMETAL KMT 350 ODG - PLC
Illinois, United StatesOverview
Brand
Model
ID #
507180
Condition
New In-Stock
Year
2021
Location
Illinois
United States
United States
Stock #
21459
KARMETAL KMT 350 ODG PLC Horizontal Auto feeding, Mitering, Bandsaw 14" x 18"
Turkish manufacturing and export company est. in 1975, in Adapazarı, designing and producing band saws and special purpose machines. Karmetal is connected to the ISO 9001 quality certification. Manual and automatic Miter band saw machines, Automatic PLC controlled band saw machines, semi-automatic band saw machines and much more.
Convert Specs to Metric
| Rect-Cap (H) | 13.78" |
| Rect-Cap (W) | 18.11" |
| Rounds-Cap | 13.78" |
| Square-Cap | 13.78" |
| Power | 5.4 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 1.3386" |
| Blade Thickness | 0.0433" |
| Blade Length | 171.26" |
| Dimensions | 55" x 87" x 47" |
| Weight | 2,976 lbs |
Equipped With
One way miter
Hydraulic vice
Variable vice pressure
Variable blade speed 25~90m/min
Laser illumination of cutting line
Adjustable manual top roller

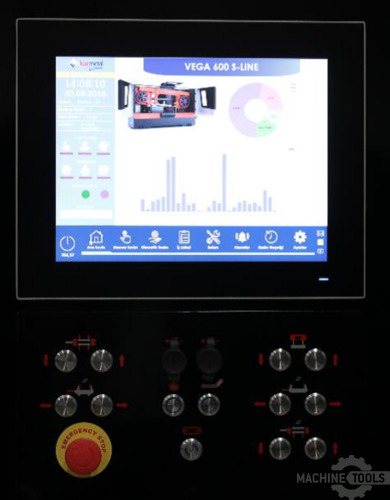

PLC Control
Rotary encoder for material component length
Hydromechanical band tension
Material support conveyor with adjustable vertical rollers
Spec Sheet
TECHNICAL SPECIFICATIONS
Main Motor : 5.4 HP
Gearbox : Bevel Helical PKD 2390 High Efficiency
Hydraulic Motor :½ HP
Coolant Motor : 1/6 HP
Blade Speed : 82 - 295 fpm
Blade Dimensions : 14' 3 1/4” x 1.33" x 19 Gauges
Machine Weight : 2,976 lbs
Machine Dimensions : 55" x 87" x 47"
Table Height : 29.1"
