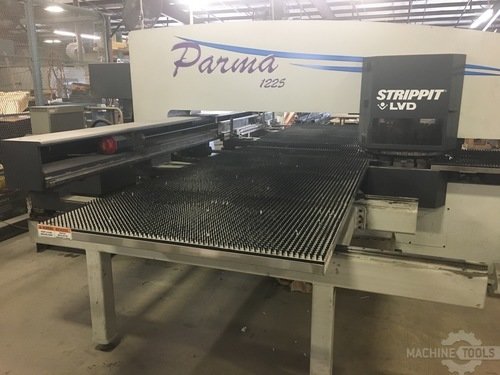

GENERAL SPECIFICATIONS Max. Punching Capacity: 20 Metric TonMax. Material Thickness: 0.250” (6.35 mm)Nominal Workpiece Size: (Y,X) 49.21”x 98.4” (1250 x 2500 mm)Table Type: Brush tableTable Capacity: 160 lbs. (73 kg)Clamping Style: Floating ClampsNumber of Clamps: 2 Manual LockMaximum Clamp Spread: 74.80” (1900 mm)Feed Clearance Under Ram: 0.984” (25 mm)Turret Configuration 21 stations Turret Layout:8 ‘A’ - 0.5” (12,7 mm)8 ‘B’ - 1.25” (31,7 mm)3 ‘C’ - 2.0” (50,8 mm)2 ‘D’ - 3.5” (88,9 mm)*Auto-Index Stations: 3 ‘C’ - 2.0” (50,8 mm)Axis Traverse Speed: Up to 3385 IPMcombined Axis Travis Speed: (86 m/min.) combinedMaximum Hit Rate at 2 mm: Up to 650 HPM INCLUDES: Fanuc Series Oi-PC CNC Controller, 21 Station Thick Style Turret with 3 AI (Auto-Index) Stations, Replaceable Punch Bore Liners, Brush Type Table and All tooling included.
