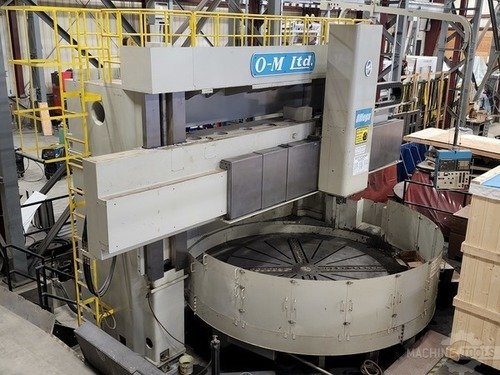

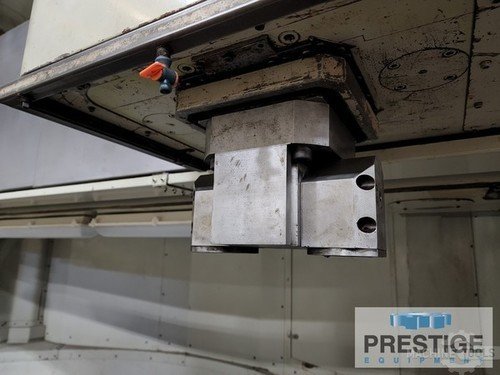

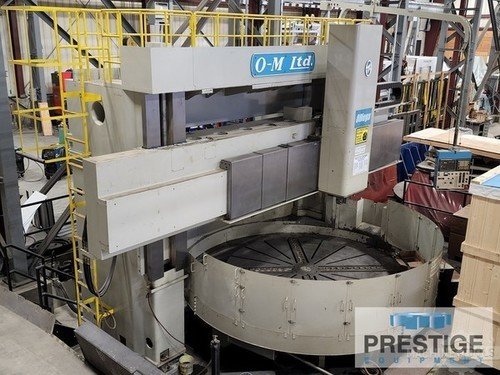

Reference #31768 OM ltd 98"/145" CNC Vertical Boring Mill FEATURES: Fanuc 18i-T CNC Controls 98.42" T-Slotted Table Independent AC Servo Feed Drives Hardened Ways on Cross Rail Ways Steel Telecoping Way Covers on Cross Rail CAPACITY: Table Diameter ........................ 98.42" Maximum Turning Diameter .............. 137.79" Max Swing ............................. 145.66" Maximum Turning Height ................ 39.37" Max Height Table to Ram Face .......... 49.21" Max Height Under Cross Rail ........... 49.60" Min Height Under Cross Mail ........... 25.98" Table Speed Ranges (Inf. Variable) .... 2 Table Speeds .......................... .5-160 RPM Table Capacity ........................ 33,000 lbs RAM HEAD: Ram Vertical Travel ................... 43.3" Ram Horiz. Travel Right of Center ..... 74.8" Ram Horizontal Travel Left of Center .. 3.93" Ram Cross Section ..................... 8.26"" x 8.26" Turning Tool Shank Size ............... 1.25" x 1.25" Rapid Traverse Rate, X & Y Axes ....... 393 IPM Cutting Feeds Per Rev., X & Y Axes .... 0.0001-20 IPR Cutting Feed Rate, X & Y Axes ......... .04 -141 IPM Machine Footprint .................... 291.4" x 236" Machine Height ....................... 191.4" Machine Weight ....................... 88,000 lbs EQUIPPED WITH: Fanuc 18i-T CNC Controls 98.42" T-Slotted Table Independent AC Servo Feed Drives Hardened Ways on Cross Rail Ways Steel Telecoping Way Covers on Cross Rail 40/50 HP Main Motor Note: Inspect Under Power in North East Facility!
