Horizontal Band SawsWELLSAW 1318
Connecticut, United StatesOverview
Brand
Model
ID #
546071
Condition
Used - Excellent
Year
2011
Serial #
4119
Location
Connecticut
United States
United States
Stock #
1318

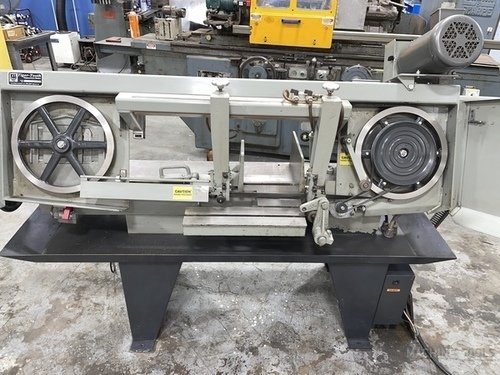

Wellsaw Horizontal Bandsaw Model 1318, 13" x 18" Capacity. 3-HP Drive Motor, Excellent Condition
Convert Specs to Metric
| Rect-Cap (H) | 13" |
| Rect-Cap (W) | 18" |
| Rounds-Cap | 13" |
| Power | 3 hp |
| Type (Auto, Manual, Semi) | Manual |
| Blade Width | 1" |
| Blade Thickness | 0.035" |
| Blade Length | 150" |
| Dimensions | 40" x 84" |
| Weight | 1,000 Lbs. |
Spec Sheet
Wellsaw Horizontal Bandsaw
Model No. 1318
Serial No. 4119 2011
13" High x 18" Wide Rectangular Capacity
13" Round Diameter Capacity
20" Wide Flat Capacity
11" High x 10" Wide at 45 Deg. Angle
1" x .035" x 150" Blade Size
70 - 375 Infinitely Variable Blade Speed
To 45 Deg. Swivel Vise
Variable Hydraulic/ Counterbalance Spring Feed Control
40" Wide x 84" Long Machine Dimensions
1,000 Lbs. Approx. Machine Weight
Equipped With:
Wellsaw's Manual Rite-Tension Blade Tensioner
Parts List, Operating & Maintenance Manual
Tiger-Tooth Bi-Metal Saw Blade
Auto Shut-Off At End of Cut
Adjustable Stock Stop
Powered Blade Brush
Coolant Pump & Tank
Items Replaced in 2021:
Blade Tensioner Assy
Band Wheel-Drive for 1"
Internal Ring Gear
Wheel Axle
Thumb Screw
Band Wheel-Idle for 1"
Drive Pinion (Fatigue Proof)
3-HP Motor Drive 208-230/460/3/60
Very Good Condition
