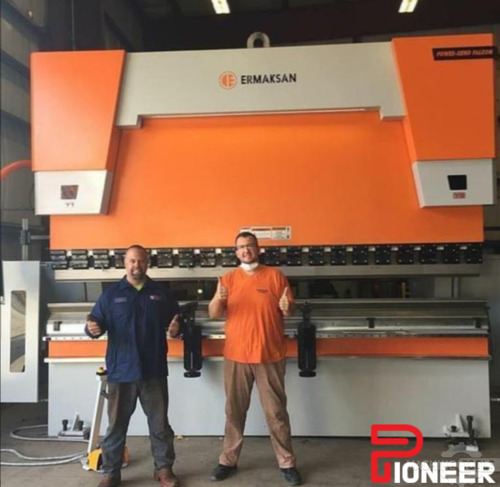

Press BrakesERMAKSAN FALCON BEND 10 X 148

United States

Printer-Friendly Format

Overview

Brand

ERMAKSAN

Model

FALCON BEND 10 X 148

ID #

570093

Type

Press Brakes

Condition

New In-Stock

Location

United States

Stock #

41004001345459

Description

Falcon 148 ton 10' press brake Hydraulic DELEM DA-58T CNC Controller TOTAL OF 4 AXIS (Y1,Y2, X, R) X:800 MM, R=250MM ERMAKSAN TWO AXIS BACKGAUGE (X:800MM, R=250MM) AMERICAN PROMECAM QUICK RELEASE ROLLERI TOP TOOL ROLLERI - 0813/011/11 4 V DIE BOTTOM TOOL 275 MM (10.8”) HIGH STROKE 410 MM (16”) THROAT DEPTH MOTORIZED CROWNING SYSTEM 230 or 460 VOLTAGE, 3PH, 60HZ REAR GUARD SIDE GUARDS WITH SWITCH DOUBLE FOOT PEDAL CONTROLLER HOERBIGER HYDRAULIC SYSTEM SIEMENS ELECTRIC SYSTEM SLIDING FRONT SUPPORT ARMS STANDARD NARROW TABLE

Specs

Convert Specs to Metric

Tonnage	148 T
Type	HYD
Overall Length	122"
Between Housings	102.4"
Stroke	10.8"
# Axis	4
Dimensions	167 " x 81 " x 110 "
Weight	18042 lbs

Spec Sheet

BENDING LENGTH ( A ) 122.0 " MAX. POWER 148.5 US Tons MAX.BENDING CAPACITY (59748 psi) 0.24 " V= 1.97 " MAX.BENDING CAPACITY (73974 psi) 0.21 " V= 1.97 " MAX.BENDING CAPACITY (81087 psi) 0.20 " V= 1.97 " MAX.BENDING CAPACITY (89622 psi) 0.19 " V= 1.97 " MAX.BENDING CAPACITY (99580 psi) 0.18 " V= 1.97 " AXIS NUMBER OF MACHINE Y1,Y2,X,R - FREE DOWN SPEED 7.9 in/s BENDING SPEED 0.4 in/s RETURN BACK SPEED 4.7 in/s STROKE ( C ) ( Y1 , Y2 ) 10.8 " BACK GAUGE STROKE ( X AXIS ) 31.5 " BACK GAUGE STROKE ( R AXIS ) 9.8 " DISTANCE BETWEEN HOUSING ( B ) 102.4 " CROWNING Motorized - THROAT DEPTH ( E ) 16.1 " TABLE HEIGHT ( F ) 35.4 " TABLE WIDTH ( G ) 3.5 " DAYLIGHT ( D ) 21.7 " PLANT VOLTAGE 230 or 460 V IP 54 - MAIN MOTOR 15 HP BACK GAUGE MOTORS (X ,R) 2x2,4 Nm PLANT TEMPERATURE 0-50 oC MAX. NOISE 70 dB OIL CAPACITY 53 US Gallons MAX. PRESSURE 3768 psi MACHINE LENGTH ( L ) 167 " MACHINE WIDTH ( W ) 81 " MACHINE HEIGHT ( H ) 110 " WEIGHT 18042 lbs
