Beam / Drill LinesPEDDINGHAUS AVENGER PLUS 1250/1C
United StatesOverview
Brand
Model
ID #
570219
Year
2019
Location
United States
Stock #
32543

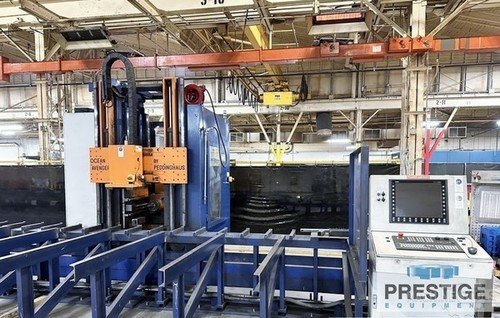

Peddinghaus Ocean Avenger Plus 1250/1C , 48" Max. Profile, 40' Table, 8-ATC, 3000 RPM, Siemens 840D, 12/2019 #32543
Convert Specs to Metric
| Power | 25 hp |
| RPM | 3,000 RPM |
| Control | CNC (Siemens 840D CNC Control) |
Spec Sheet
Reference #32543
Peddinghaus Ocean Avenger Plus 1250/1C Single Spindle CNC Beam Drill With ATC
FEATURES:
High Speed Carbide Milling & Drilling
Siemens 840D CNC Control
8-Position Tool Changer
Unist MQL (Minimum quantity lubrication)
40' Fixed Table
CAPACITY:
Maximum Profile Height ................ 48"
Maximum Profile Length ................ 40'
Maximum X-Axis Speed .................. 150 FPM
Maximum Y-Axis Speed .................. 60 FPM
Spindle Motor ......................... 25 HP
Drilling Speed, Variable .............. 0 - 3000 RPM
Drilling Feed Rate, Variable .......... 0 - 30" IPM
Spindle Stroke, Max Reach ............ 26"
Electrics ............................. 460 V, 3 Ph, 60/50 HZ
Approx. Machine Weight ................ 8,340 Lbs
EQUIPPED WITH:
Siemens 840D CNC Control
8-Position Tool Changer
Precision Ball Screw Spindle Feed
Unist MQL (Minimum quantity lubrication)
40' Fixed Table
