Vertical Boring Mills (incld VTL)SUMMIT SUMMIT 98" DOUBLE COLUMN VERTICAL BORING MILL
California, United StatesOverview
Brand
Model
SUMMIT 98" DOUBLE COLUMN VERTICAL BORING MILL
ID #
570261
Condition
Used - Excellent
Year
2004
Location
California
United States
United States
Stock #
10042109
Summit 98" Double Column Vertical Boring Mill
FROM AEROSPACE VERY CLEAN FACILITY Better then Bullard
| Dimensions | REAL BIG !! |
| Weight | A LOT !! |
Equipped With
EQUIPPED WITH:

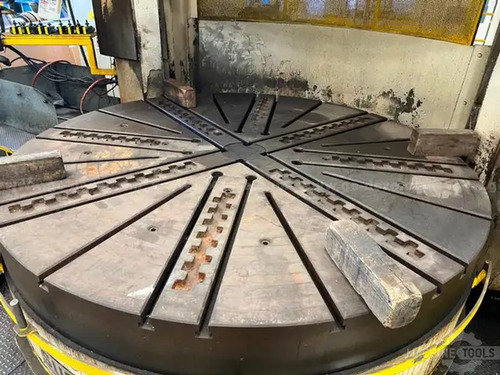

98" T-SLOTTED TABLE WITH 4-TOP JAWS
FULL PENDANT CONTROLS
RAM, TURRET & SIDE HEAD
2-AXIS NEWALL DIGITAL READOUT SYSTEM
75 HP TABLE DRIVE
NOTE:
NO PIT REQUIRED!
Spec Sheet
CAPACITY:
TABLE DIAMETER 98.5"
MAXIMUM SWING 106"
MAXIMUM HEIGHT UNDER CROSS RAIL 70"
RAM STROKE 55"
TURRET STROKE 30"
TABLE SPEEDS 1.24-112 RPM
FEEDS (16) .00197-1.068 IPR
ELECTRICS 480/240/3/60
EQUIPPED WITH:
98" T-SLOTTED TABLE WITH 4-TOP JAWS
FULL PENDANT CONTROLS
RAM, TURRET & SIDE HEAD
2-AXIS NEWALL DIGITAL READOUT SYSTEM
75 HP TABLE DRIVE
NOTE:
NO PIT REQUIRED!
