CNC LathesOKUMA 2SP-35HG
Illinois, United StatesOverview
Brand
Model
ID #
577030
Type

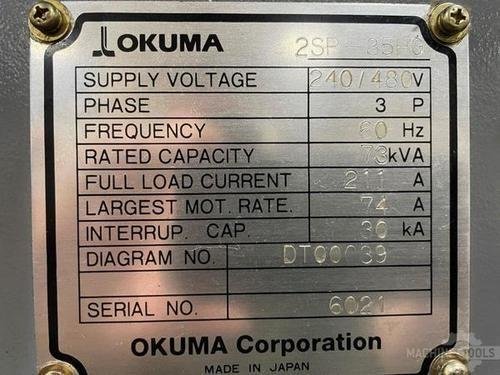

Serial #
6021
Location
Illinois
United States
United States
Stock #
91566
Twin Spindle Twin Turret, Gantry load / Unload system Fanuc 18iTB, 2- 10" Chucks, , Chip Conveyor, High Pressure Coolant, Stocker Tables
Convert Specs to Metric
| size | 12" Chucks |
| Swing | 11" |
| Machining Length | 17" |
| # Axis | 4 |
| Chuck Size | 12" |
Equipped With
Fanuc 18iTB CNC Control
2- 10" Chucks
Gantry load / Unload system
Chip Conveyor
High Pressure Coolant
Spec Sheet
Okuma Model 2SP-35HG Twin Spindle CNC Lathe with Gantry Loader
TRAVELS:
-X Axis: 8.66"
-Z-Axis: 9.06"
RAPID TRAVERSE:
-X Axis: 944 IN/MIN
-Z Axis: 1181 IN/MIN
TURRET:
TYPE: Drum Type V12+V12
Number of Tools: 12+12
SPINDLE:
Nose Type: A2-8
Hole Diameter: 3.22
Front Bearing Diameter: 4.72
Speed Range: 3,500 RPM
Speed Range Shift: Stepless
Distance Between Spindle Centerlines: 17.72"
Max. Cutting Diameter: 11.02"
Max. Cutting Length: 9.06"
Spindle Center Height From Floor: 47.44"
Machine Weight: 23,100 LBS
