Vertical & Horizontal MillsDAH LIH DL-GH950
Ontario, CanadaOverview
Brand
Model
ID #
577543
Year
1998
Location
Ontario
Canada
Canada
Stock #
13343

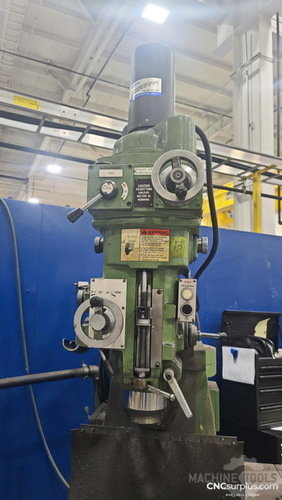

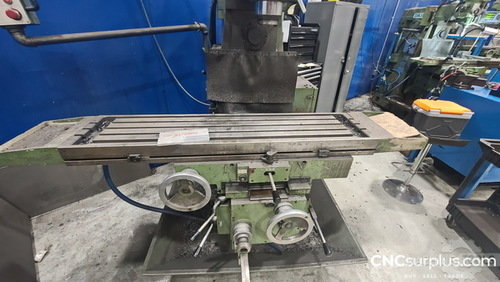

Dah-Lih DL GH950 Vertical/Horizontal Milling Machine, Adjustable Automatic Feeds, Centralized Lubrication, Vertical Head Tilt,
Convert Specs to Metric
| Table Size-W | 12.2" |
| Table Size-L | 53.14" |
| Max Workpiece Weight | 704 lb |
| X-Axis | 37.4" |
| Y-Axis | 13.77" |
| Z-Axis | 18.5" |
| RPM (Vertical) | 3,800 RPM |
| RPM (Horizontal) | 2,040 RPM |
| Taper | ISO 40 |
| Power (Vertical) | 5 hp |
| Power (Horizontal) | 5 hp |
| Vertical Head Tilt | +/-90° |
| Quill Diameter | 4.33" |
| Vertical Spindle Quill Stroke | 5.51" |
| Ram Rotation | 360° |
| Rapid Traverse (X/Y/Z) | 126 / 126 / 50 in/min. |
| Dimensions | 83" X 83" X 98.5" |
| Weight | 6,173 lb |
Equipped With
Adjustable automatic feeds
Vertical head tilt
Ram rotation
Centralized lubrication
