FSM HT100

Avg. Rating:
Write a Review
Model:HT100
Brand:FSM
Type:Welding Positioners
Price:Contact Sales Rep.

Specs

Max Weight of Workpiece:22,046.2 lb

Product Overview

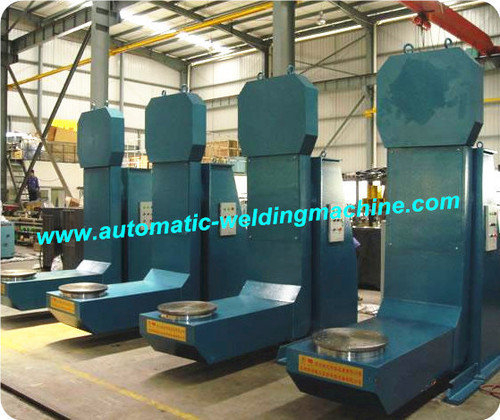

Head And Tail Stock Lifting Pipe Welding Positioner of Automatic Type made in China

Type HT100
Loading capacity 10000
(kg)
Rotary  speed of working table (rpm) 0.01-0.1
Turing  speed  of working table (rmp) 0.1
Working table dimension (mm) Φ2000
Working table turning angle (°) 0-120°
Motor power (kw) Rotation 4
Turning 5.5
Speed adjusting method Frequency conversion step-less control
Maximum gravity diameter (mm) 300
Linear eccentricity 400
Maximum rotary diameter at 90° Φ3000
Machine weight (kg)

FSM HT100
