• Product Overview

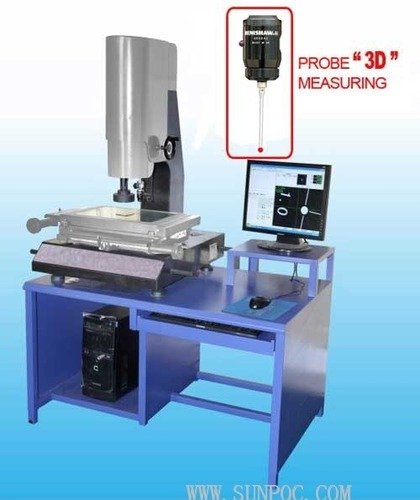

    Video Measuring Machine VMT Series

    ◆Vision 3D Measuring Height
    ◆ Quality Granites Arm And Base
    ◆Probe 3D measuring machine

    A video measuring system is a kind of measuring instrument, by means of CCD imaging and magnifying the work-piece image to the software system, and by using various measuring functions in the strong software system to realize microscope and quality control for the sizes, positions and forms of the measured piece. It is widely and suitably used in measurement services at various levels or workshops’ inspection stations in various industries of electronics, instruments and meters, cutting-tools and gripping devices, precision machine elements, precision hardware pieces, electronic components, plastic and rubber finished products, semiconductor components, punching pieces, socket connectors, die equipment, automobiles, machining operation, military industry, aerospace, etc. and colleges and universities, scientific research institutes, etc.

    Specification list:
    Model VMT-4030
    X、Y travel range 400x300mm
    Z move range 200mm
    X、Y resolution 0.001mm
    Lens magnify 0.7~4.5X
    Image magnify 20X~266X
    Object visual field 10~1.6mm
    Accuracy (3+L/200)um
    Lens China High Quality lens
    CCD 430,000 pixel color (SONY CMOS chip)
    Measure software VM 2.5D special video measuring software(auto-edge finder)
    Machine base Granitic
    Light source profile light and surface light is LED shadow-less lamp
    Over size 980x7500x950
    weight 300kg
    computer(optional) 2.5G CPU、17〞LCD、1G memory、160GHDD、DVD-ROM
    Optional part 0.5X、 2X  lens

  • About Company

    Being a professional manufacturer and exporter in the field of of quality test instruments, Sunpoc mainly supplys optical profile projectors, video measuring machines, toolmaker microscopes, digital readout, linear scales, hardness tester, digital caliper and measuring software, etc. The products are widely applied for in the industry of mechanic, electronic, mold and hardware for quality control etc. Adhere to the "quality first, users first" business purposes and “Creating the 1st class domestic supplier, setting up international name brands” as the developing target of the enterprise, the Sunpoc team has worked and researched with constantly efforts to improve the quality and explore new products to serve the customers better. Under the scientific and strict management and always deliver on time and honor the contract, Sunpoc has enjoyed a good reputation both home and abroad. Currently our product has passed the ISO9001:2000, Certification of 2000 International Quality Control System, CE Certification and verification of ISO1002-1 Metering Certification System. Sunpoc has already established some distributor in mainly district in the world with its service and technical support networks. At the same time, our team will bring professional service for each of our customer. Today, we are willing to work with the worldwide lifeful partner for a better tomorrow, to climb up a new height of optical measurements. Let us fight together!

Looking to Purchase a New SUNPOC VMT-4030?
