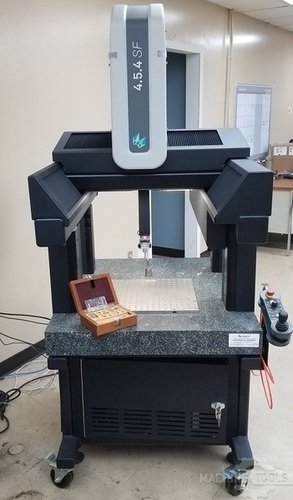

HEXAGON 4.5.4 SFMáquinas de Medición por Coordenadas

(5) Fotos

Más sobre este modelo

Para ver mayor información sobre HEXAGON 4.5.4 SF, incluyendo información de marca, fotos, videos, y más, dé click aquí.

Descripción

Can be seen under power in our PA warehouse!

Especs

Convertir Especificaciones al Sistema Métrico
X
14 "
Y
20 "
Z
13.9 "
Control CNC
CNC (UMP-360 CONTROL SYSTEM)

SPECIFICATIONS
TRAVELS: 14” X 20” X 13.9”
TESASTAR-i PROBE HEAD
TOUCH PROBE WITH ADJUSTABLE TRIGGERING FORCE
168 INDEXING POSITIONS
INDEXATION IN INCREMENT OF 15°
CLEARLY VISIBLE INDEXATION
EACH AXIS CAN BE LOCKED BY MEANS OF 2-PUSH BUTTONS
FEATURES
HARDENED LINEAR GUIDES, RECIRCULATING BEARINGS AND PRECISION DRIVES PROVIDE LONG-LIVED, RELIABLE INSPECTION
LIGHT-WEIGHT BELLOWS AND COVERS
INVERTED SCALES – HIGH RESOLUTION HEIDENHAIN SCALES
THERMAL ISOLATION – UNIQUE THERMAL ISOLATION ELEMENTS AS WELL AS TEMPERATURE COMPENSATION ENSURE ACCURACY IS MAINTAINED IN CHANGING SHOP FLOOR TEMPERATURES
VIBRATION ISOLATION
ROLL AROUND STAND
GENERAL
FLOOR SPACE: 32.8” LR X 52.2” FB X 79.5” H
ELECTRICS: 110 VOLT
EQUIPPED WITH
UMP-360 CONTROL SYSTEM
LED WORKSPACE ILLUMINATION
PROBE QUALIFICATION SPHERE & CLAMP KIT
DEMONSTRATION BLOCK
DELL OPTIPLEX 7010DT COMPUTER WITH 21.5” TOUCH SCREE MONITOR
