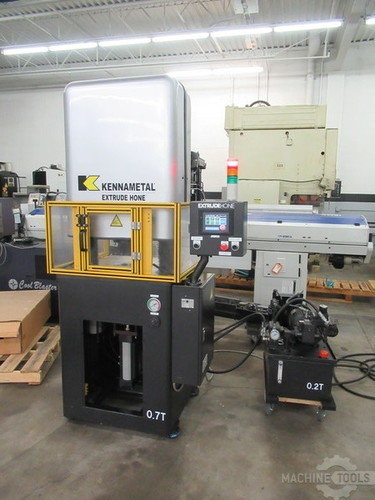

Serial No. C0292 New - 2005 (Never put in Production) GENERAL INFORMATION: This machine offers extremely fast, safe, and clean deburring, radius, or contouring on all areas of metal workparts. Since the process does not create additional stress it is ideally suited for intricate and delicate parts. Optimum deburring is provided via a programmable cycle time and precise parameter control. Programmable workpart numbers and values make it easy for any operator to set up new parts. This machine is built with a welded 304 stainless steel frame and stainless steel top and front panels. The work enclosure has an integrated adjustable feed head with eight inch (203 mm) stroke. The enclosure design provides easy access to tool mounting features and includes a sealed light fixture, four- inch (100 mm) duct exhaust, and quick anode and cathode disconnects. A 230 gallon (870 liter) capacity electrolyte tank is accessible from the rear of the machine for easy maintenance and includes a stainless steel coil type heat exchanger. A pendent mounted touch-screen control provides an easy operator interface. Two handed touch safety push buttons are provided for setup and manual operation. MACHINE SPECIFICATIONS: Voltage Range............0 - 30 VDC Current Range............0 - 300 amp Power............440V / 3Ph / 60 Hz Electrolyte Capacity............230 gallons (870 liters) Feed Head Stroke - Adjustable............8" max Electrolyte Pressure Control - Adjustable............0 - 90 psi (0 -6.2 bar) Work Area............41" (L-R) x 20" (F-B) x 23" (H) pH Indication............Monitor (optional automatic control) Fixture Height From Floor............41" approx. Control Voltage............24 VDC Dimensions - Approximate............84" (L-R) x 90" (F-B) x 98" (H) EQUIPPED WITH: Allen Bradley PLC Turmoil Model OC-150 R Chiller FSI - Filter Specialists, Inc. Electrolyte Filter Chem-Tainer External Electrolyte Tank with Metering Pump Operation Manual and Schematics *Preliminary Specifications Subject to Verification
