YODER M-2ロール フォーマー

写真( 8 )

ブランド
モデル
ID
463852
場所
Ohio
アメリカ合衆国
在庫No.
3194
平均の値段

このモデルの詳細

詳細情報を表示するにはYODER M-2ブランド情報、写真、ビデオ、および多くを含むが、 ここをクリック

ID
463852
ブランド
モデル
場所
Ohio
アメリカ合衆国
在庫No.
3194

詳細

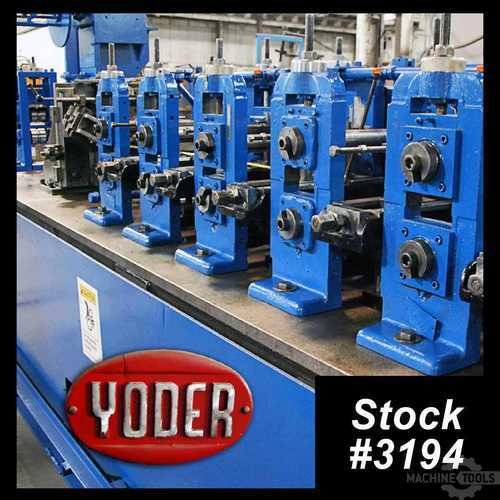

2-1/2″ (63.5 mm) x .095″ (2.41 mm) YODER M2 Tube Mill

スペック

UTUBE NUMBER: 3194

MANUFACTURER: YODER

MODEL NUMBER: M2

SERIAL NUMBER:

YEAR:

SPECIFICATIONS:

Line Direction: Right to Left

Maximum Tube Diameter: 2-1/2" (63.5 mm)

Minimum Tube Diameter: 1/2" (12.7 mm)

Maximum Wall Thickness: .095" (2.41 mm)

Minimum Wall Thickness: .020" (.508 mm)

Maximum Line Speed: 180 FPM, Max. Gear In Speed, No Load

Maximum D/T Ratio: 60:1

Minimum D/T Ratio: 10:1

Maximum Material Yield: 50,000 PSI

GEAR BOX DATA:

Spindle Diameter: 2"

Roll Space Forming: 12"

Roll Space Fin & Size: 12"

Horizontal Centers: 15"

FORMING MILL:

(1) Entry Guide Table with Edge Trimming

(3) Driven Breakdown Stands with C Collars

(6) Idle Side Rolls with Vertical Adjustment & Top Straps

(3) Driven Fin Stands with C Collars

(1) Mandrel Bracket

WELDING SECTION:

(1) 3 Roll Weld Pressure Unit

(1) Driven Chip Winder

(1) Seam Ironer Unit

(1) Weld Seam Brush

(1) Single Scarfing Unit

(1) Coolant Section – Flood Type, 20′

SIZING MILL:

(3) Driven Sizing Stands with C Collars

(4) Idle Side Rolls with Vertical Adjustment

(1) Straightener, Double Sided Turkshead 8 Roll

(1) Measuring Wheel Assembly

MILL DRIVE:

(2) 50 HP DC Motors

(1) Control Panel

(1) RIDGEWOOD ELECTRIC Drive Panel (Year 2000)

NOTE: Driven Stands are Equipped with Oil Recirculating System

OVERALL DIMENSIONS:

APPROXIMATE WEIGHT:

LOCATION: Universal Warehouse, Perrysburg, Ohio

CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS USED YODER M2 ERW TUBE MILL LINE BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ THE TERMS AND CONDITIONS OF SALE THAT APPLY TO THIS USED YODER M2 ERW TUBE MILL. VISIT UNIVERSALCONTROLSGROUP.COM FOR INFORMATION ON NEW CONTROL PANELS, DRIVE SYSTEMS AND PLANT AUTOMATION.
