MITSUBISHI EDM EA8렘 유형 싱커 EDM

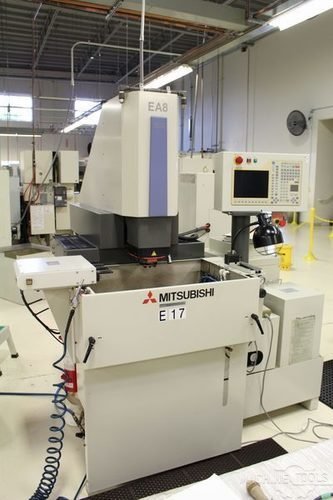

Ea8 front
사진 ( 3 )

이 모델에 대해 더욱

온 자세한 내용 보려면 MITSUBISHI EDM EA8 브랜드 정보, 사진, 동영상 등을 비롯한, 여기를 클릭 .

세부내역

Dimensions & Travels X-Axis Travel: 11.8" Y-Axis Travel: 9.8" Z-Axis Travel: 9.8" Maximum Work Piece Size (W x D x H): 29.1" x 18.5" x 5.9" Maximum Dielectric Fluid: 7.8" Internal Work Dimensions (W x D x H): 30.3" x 19.7" x 9.8" Maximum Work Piece Weight: 1200 lbs. Table Dimensions: 19.6" x 13.8" Maximum Electrode Weight: 55 lbs. Chuck Distance Table to C-Axis: 7" - 16.8" Minimum Command Unit / Resolution: .0001" / .000002" Rapid Travel Speed: 78.7 IPM Filter Tank Capacity: 51 Gallon C-Axis Minimum Indexing Angle / Drive Unit: .001° C-Axis RPM Range: 10 RPM or 20 RPM EA8 CNC EDM SPECIFICATIONS: Machine structure - Fixed table / traveling column X-axis stroke (inch) 11.81 Y-axis stroke (inch) 9.84 Z-axis stroke (inch) 9.84 Work tank internal dimensions 30.31” x 19.69” x 9.84” W x D x H) Max. Dielectric fluid level 7.87” Work tank access Up/down style front door Rapid fill / drain Manual (std.) Auto (opt) Table dimensions 19.69” x 13.78” (W x D) Max. Workpiece weight 1,214 lbs. Max. Electrode weight 11 lb. Table to platen distance 7.87” – 17.72” Floor to table level distance 32.68” Rapid travel speed 78.74 inches per min. Min. command input .0001mm / .00001” Min. drive resolution .00005mm / .000002” Drive motor type - Intelligent AC servo Motor coupling type - Direct drive Positioning detector - Optical rotary encoder Machine unit dimensions (in) (W x D x H) 37.80 x 57.09 x 78.35 Machine unit weight 2649 lbs. Power Supply Type - FP60 Machining current: Average 60 / Peak 80 Program support function, - E.S.P.E.R. Machining function - Fuzzy Pro II Plus Graphic display - 10.4” TFT color LCD CPU / type - 64 bit / PC Dielectric Reservoir capacity - 51 Gallons Filtering method - Paper cartridge (1pc) Machine Layout (in) (W x D) 63.39 x 66.02 C-Axis Max. Electrode weight 11 lbs. Max. RPM- 10 / 20 Min. indexing angle .001 degree Min. drive unit- .001 degree

투기

미터에 사양 변환
파워 랙
80 A
테이블 크기 - W
13.7 "
테이블 사이즈-L
19.6 "
X-축 이동
11.8 "
Y-축 이동
9.8 "
Z-축 이동
9.8 "
치수
63.9 x 67.5 x 78.7"
무게
2649 (LBS)
제어반
CNC (PC BASED)

The Mitsubishi EA8 features a 64-bit, PC-based CNC control system. The advanced system features a 10.4-inch TFT LCD screen for faster data processing and servo control. The EA8 also features E.S.P.E.R. for step-by-step programming

Equipped with:
- Mitsubishi FP-60EA CNC Control,
- 4-Position Shuttle Tool Changer
- 3R Macro C-Axis
- Dielectric Tank & Chiller
- Fire Extinguisher
- Auto Lubrication System
