KAWASAKI ROBOTICS 9 AXES LASER WELDING/CLADDING CELL레이저 용접기

ID#
426230
상표
KAWASAKI ROBOTICS 9 AXES LASER WELDING/CLADDING CELL
조건
중고 - 우수
년도
2010
위치
Texas
미국
환불 정책
있는 그대로
가격
$125,000.00 USD

세부내역

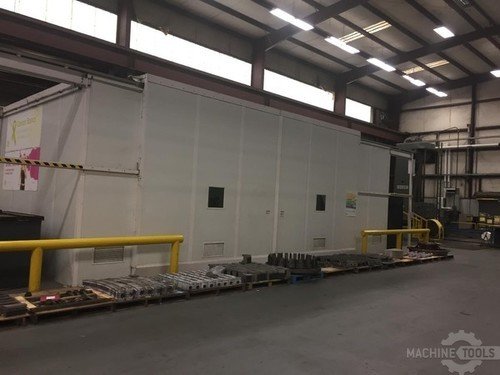

FN30N+ Kawasaki Robotics 9 Axes Cladding Cell with additional 7 PLC Axes was removed from GE Oil and Gas in prefect condition. It originally incorporated a 2000 watt IPG fiber laser. The laser was removed and is not included. The system can accommodate an IPG laser or any Laser with a QBH output fiber. Other fiber connections can be utilized with a little modification to Precitec Focus Head. This Cell was built to accommodate large GE parts but, is versatile enough to accommodate many types of parts with tooling changes. The cell can be used for multi-axis Cladding as well as welding. It can also be used for multi-axis laser cutting with focus head modifications. Includes Operation, System Training, Tooling Change and Calibration Manuals. This cell is complete with Sulzer Metco TWIN 10C Powder Feeder, enclosure with power opening doors and all required safety circuits and hardware. Cell was over 2 million new with laser. Included with system are full sets of Operation, Tool Change and Training Manuals. Equipment price is negotiable and equipment Financing is available. Installation assistance is available as an option. As an option we can also include laser of your choice or include a beam switch if you have an IPG laser on a existing Cutting System. Rigging/Shipping is the responsibility of the buyer. Cladding improves wear resistance and corrosion characteristics of a component or a component area. Therefore, the compact and solid cladding head Precitec YC50 is intended for fiber-guided laser in the medium to high powered range. Areas of application are e.g. repair welding of tools, turbine blades or casting molds, tempering of surfaces as well as generation of structures in tool, automotive and airplane manufacturing.

투기

제어반
CNC (Kawasaki)

Cladding/Welding Speed: 4 mm/s — 15 mm/s
Cladding/Welding Diameter (OD): 50 mm — 1350 mm
Travel (Linear): 5791 mm
Holding Diameter (On Rollers): 40 mm — 500 mm
Part Weight: 3,000kg on Skyhook
15,000kg on Pedestals (7,500 kg per pedestal)
